Alfa Romeo 155 Factory Service Manual (1992-1998)65 · Heating and ventilation
65 · Heating & A/C

Removal

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Electronic control unit › Removal
Heating and ventilationRemoval

Removal

  1. Remove the ashtray.
  2. Loosen the three screws securing the Check Panel.
  3. Pull out the Check Panel.
  4. Disconnect the connectors and remove the Check Panel.

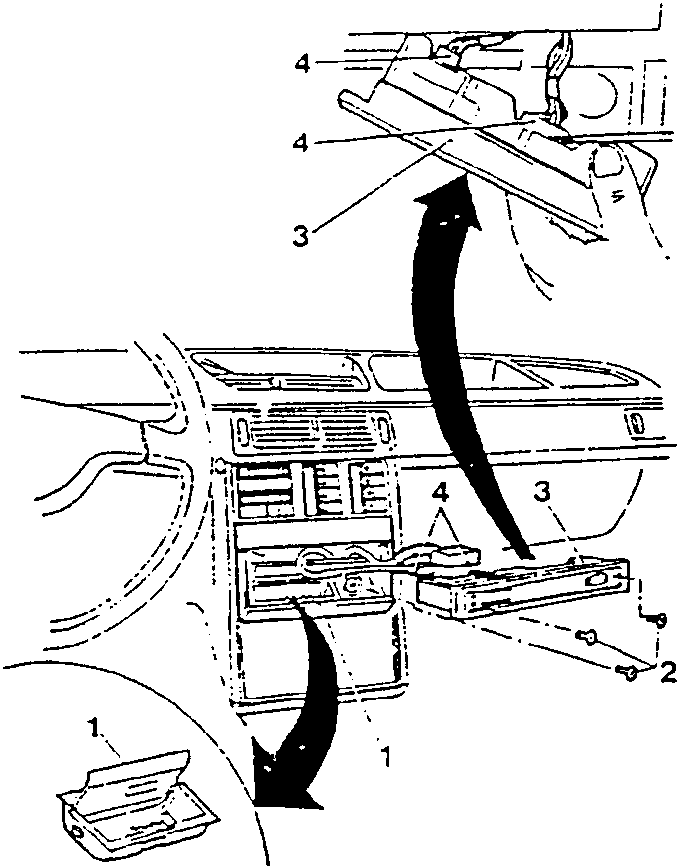

Diagram showing removal of check panel and ashtray with arrows indicating pull-out direction and screw locations.
  1. Loosen the two screws securing the control unit to the front covering of the central console.
  2. Disconnect the three connectors from the control unit.
  3. Remove the control unit.

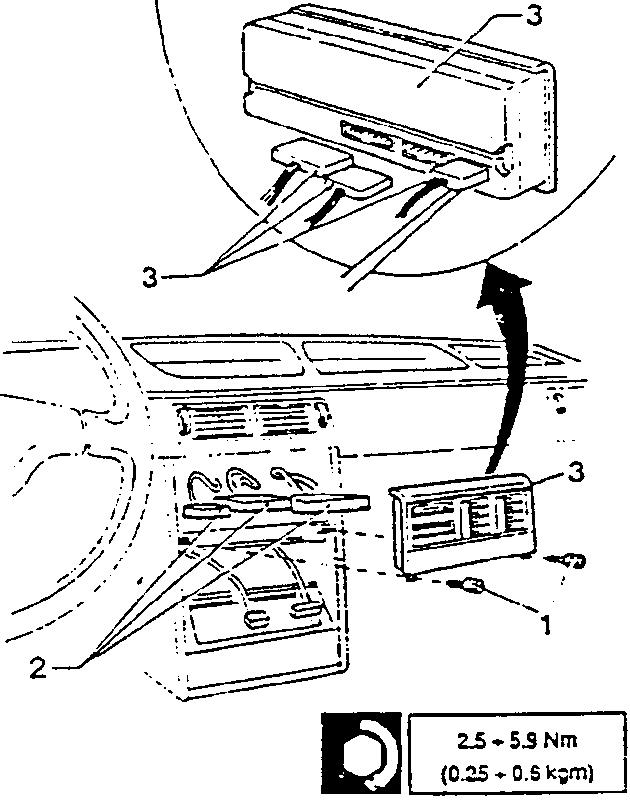

Diagram showing removal of electronic control unit with arrows indicating pull-out direction and screw locations. Torque specification box shown: 2.5 - 5.9 Nm (0.25 - 0.5 kgm).

2.5 - 5.9 Nm
0.25 - 0.5 kgm

Refitting

To refit, reverse the procedure followed for removal.

Supplementary Information regarding refitting

  • Tighten the screws to the correct torque.
