Removal

Removal

• First carry out the removal procedure given in the paragraph "CONVEYOR ASSEMBLY AND HEATING-DISTRIBUTION UNIT - Removal".

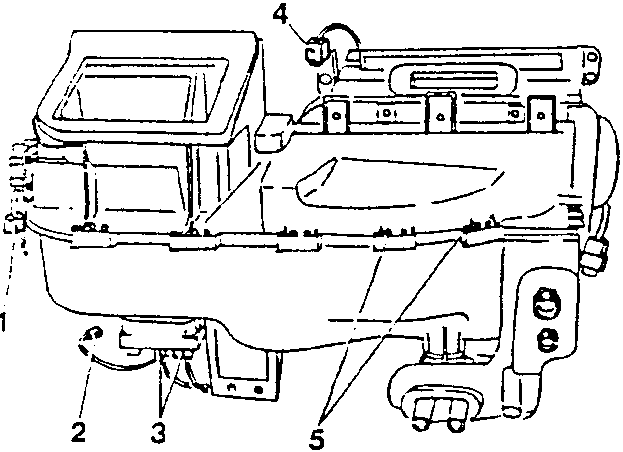

1. Detach the connector from the electric motor controlling the external and recirculation air regulation vent.
2. Disconnect the connector from the electric fan.
3. Disconnect the two connectors from the electric fan-speed variator.
4. Disconnect the connector from the upper mixed air temperature sensor.
5. Loosen the screws securing the upper part of the conveyor (9 on the side and 3 on the front) and, applying leverage with a thin-bladed screwdriver on the retaining tabs, remove the upper part of the conveyor.

1. Part 2
2. Part 3
3. Part 4
4. Part 5

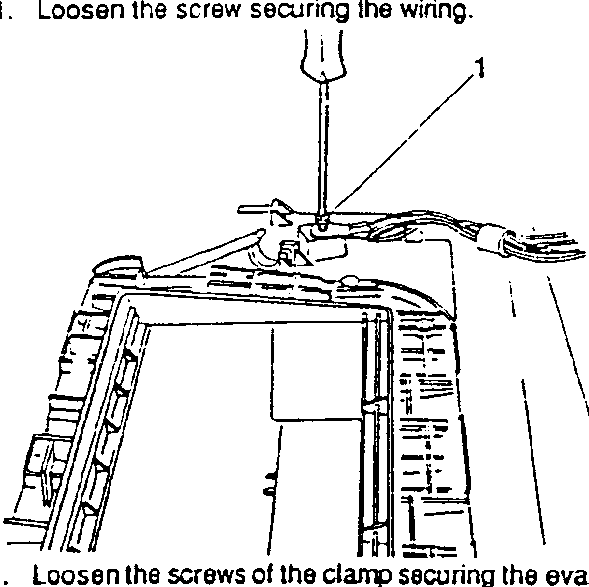

1. Loosen the screws of the clamp securing the evaporator hoses.

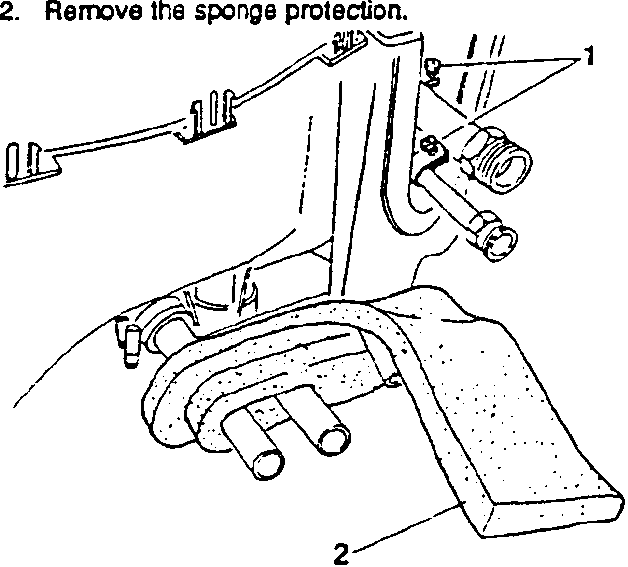

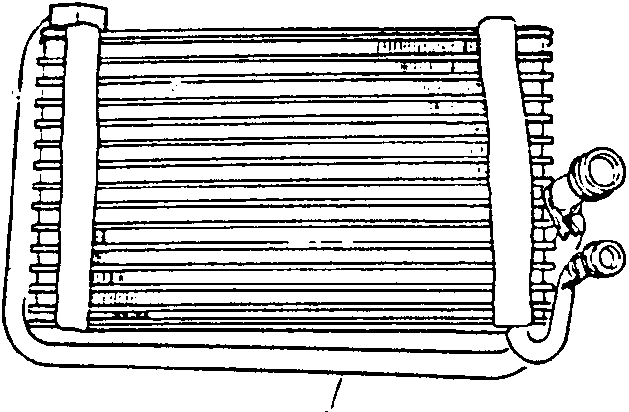

1. Remove the evaporator.

1. Part 1

Refitting

To refit, reverse the procedure followed for removal.
