Alfa Romeo 155 Factory Service Manual (1992-1998)65 · Heating and ventilation
65 · Heating & A/C

Removal

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Three-level pressure switch & defroster pressure switch › Removal
Heating and ventilationRemoval

Removal

  1. Disconnect the electrical connection from the connection uniting the terminal cables of the three-level pressure switch.
  2. Unscrew the pressure switch from the hose.

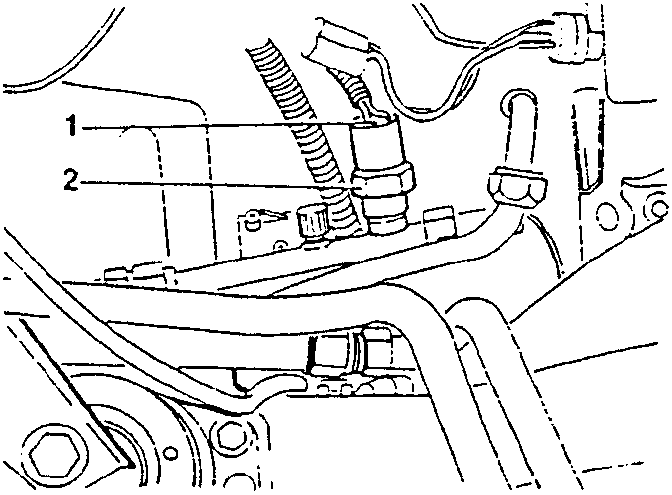

Three-level pressure switch with labeled parts 1 and 2
  1. Part 1
  2. Part 2

Refitting

To refit, reverse the procedure followed for removal.

DEFROSTER PRESSURE SWITCH

Removal

  1. Disconnect the electrical connection from the pressure switch.
  2. Unscrew the pressure switch from the hose.

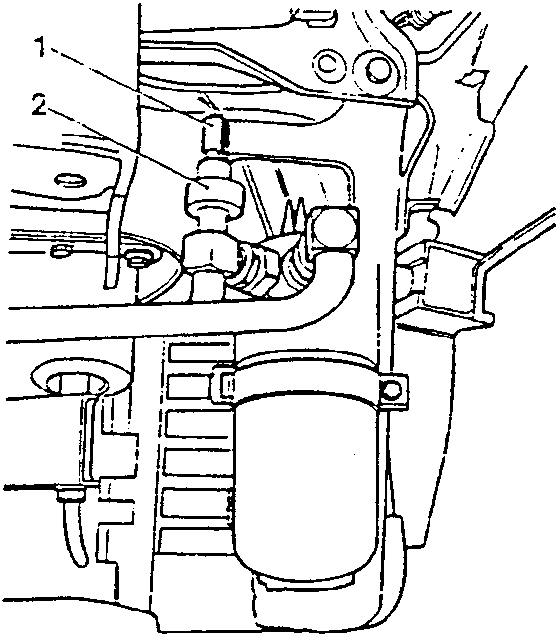

Defroster pressure switch with labeled parts 1 and 2
  1. Part 1
  2. Part 2

Refitting

To refit, reverse the procedure followed for removal.
