Heating and ventilationRemoval

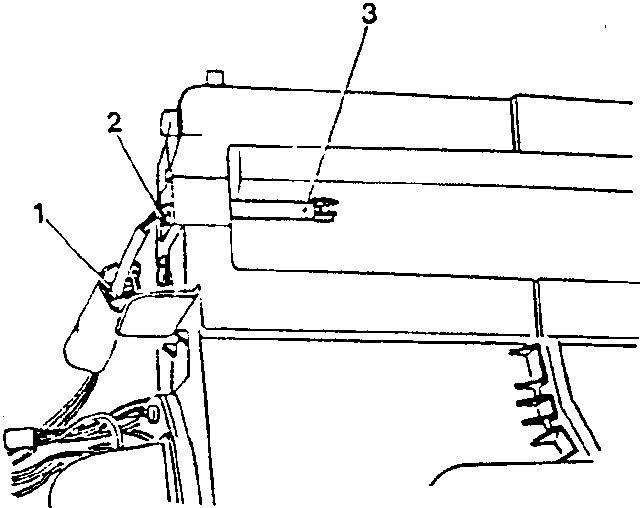

Removal
- First carry out the removal procedure given in the paragraph "CONVEYOR ASSEMBLY AND HEATING-DISTRIBUTION UNIT - Removal".
- Disconnect the electrical connector.
- Loosen the screw securing the heating-distribution unit.
- Remove the sensor.
Refitting
To refit, reverse the procedure followed for removal.

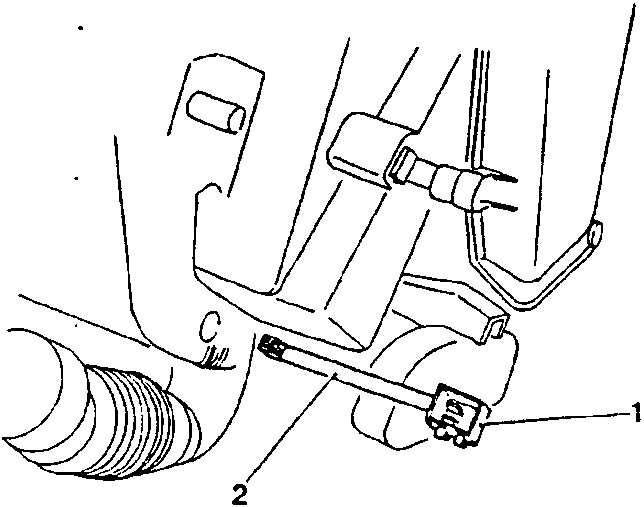

LOWER MIXED AIR TEMPERATURE SENSOR
Removal
- Remove the dashboard skirt (see GROUP 66).
- Disconnect the electrical connector.
- Using a thin-bladed screw driver as a lever, remove the sensor.
Refitting
To refit, reverse the procedure followed for removal.
