Passenger compartment air temperature sensor › Removal
Heating and ventilationRemoval

Removal

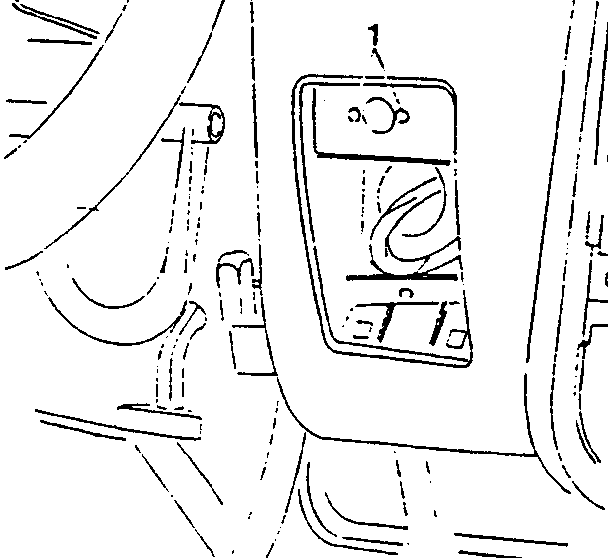

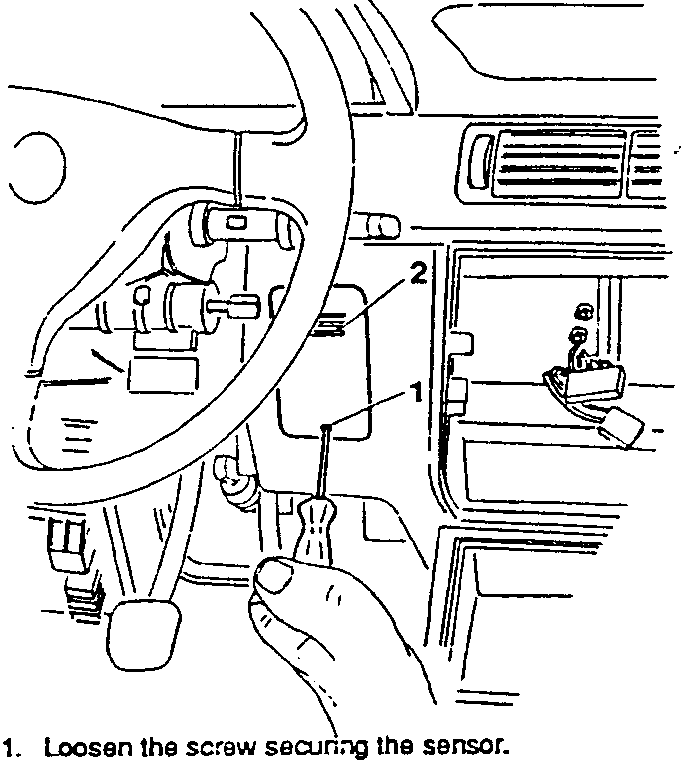

  1. Loosen the screw securing the passenger compartment air temperature sensor cover.
  2. Using a thin-bladed screwdriver as a lever remove the cover from its seating.
Diagram showing hand loosening screw 1 and removing cover 2 from sensor

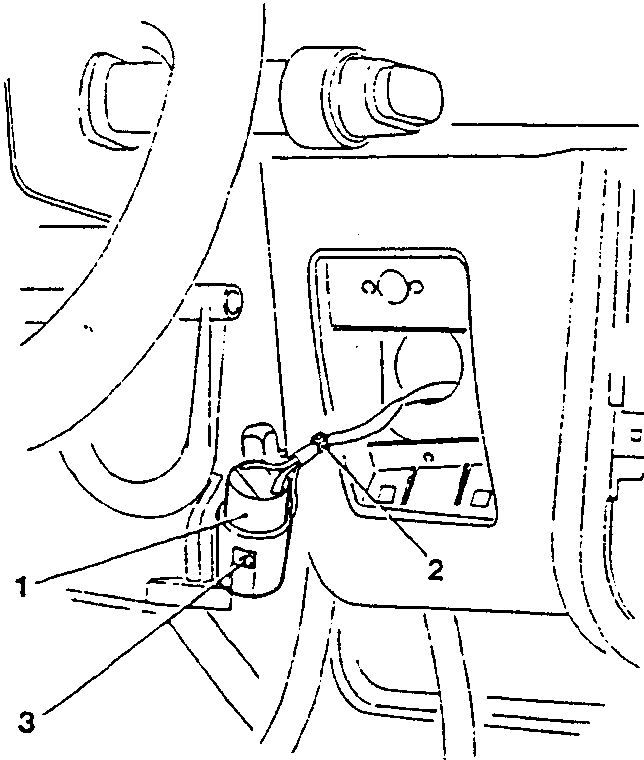

  1. Loosen the screw securing the sensor.
Close-up diagram of sensor 1 with lever 2 and cable 3

Refitting

To refit, reverse the procedure followed for removal.

EXTERNAL AIR TEMPERATURE SENSOR

  • This sensor forms an integral part of the left-hand door mirror. If the sensor is found to be faulty it is necessary to replace the entire assembly (see GROUP 40).
Diagram shows fuel filter connection and mounting bracket assembly
