Refitting

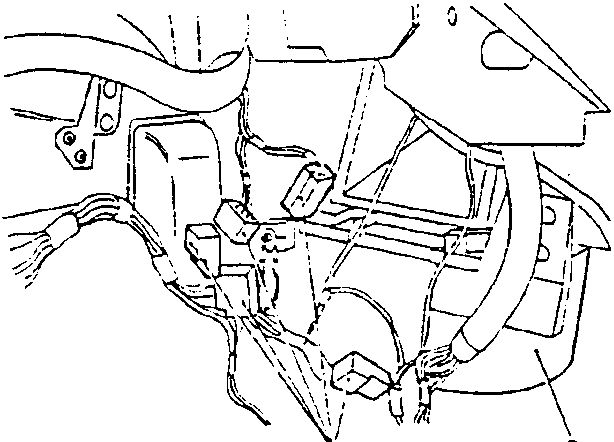

1. Disconnect all the electrical connections including the earths.
2. Remove the assembly paying particular attention to the upper air duct gasket in the dashboard compartment.

Refitting

To refit, reverse the procedure followed for removal.

Supplementary Indications regarding refitting

• Tighten the connections to the specified torque.

HEATING/COOLING RADIATOR

Removal

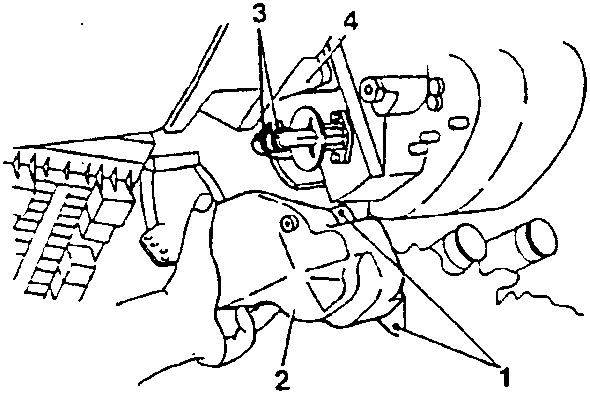

1. Working on the left-hand side of the conveyor (driver's side), loosen the two screws on the cover of the heating/cooling radiator.
2. Remove the cover.
3. Loosen the two clamps securing the engine coolant inlet hose to the tap.
4. Loosen the three screws securing the actuator to the assembly and remove the actuator.

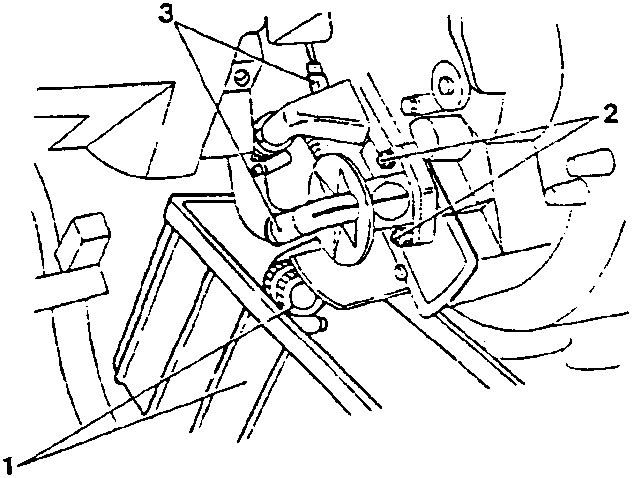

1. Disconnect the hose from the tap taking care not to spill any liquid. Use a container to catch any drips.
2. Loosen the two nuts securing the tap to the radiator.
3. Remove the tap together with the relative control levers.
