Alfa Romeo 155 Factory Service Manual (1992-1998)65 · Heating and ventilation
65 · Heating & A/C

Refitting

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Heating/cooling radiator › Refitting
Heating and ventilationRefitting

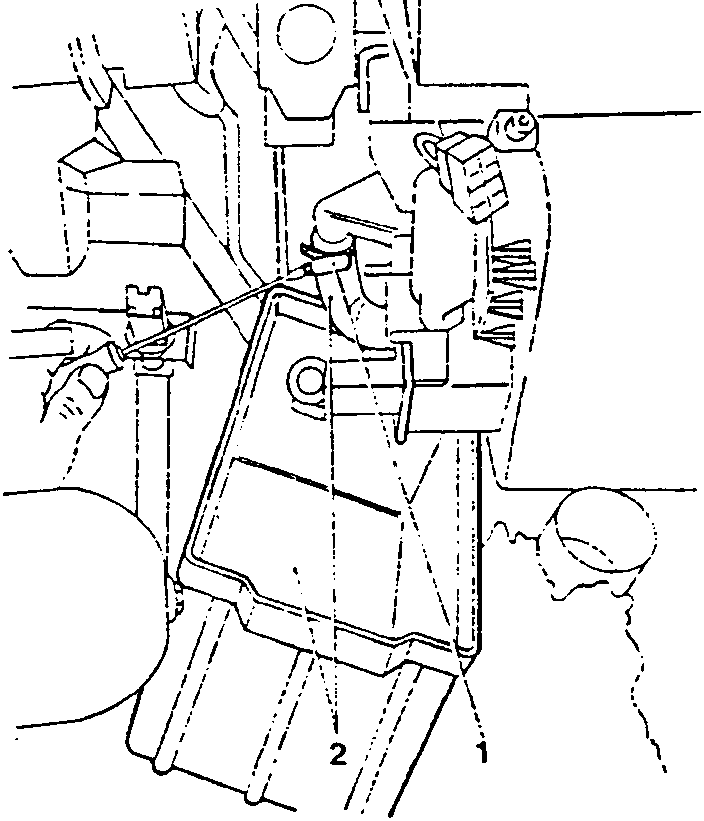

  1. Loosen the clamp securing the upper engine coolant outlet hose from the heating/cooling radiator.
  2. Disconnect the hose taking care not to spill any liquid. Use a container to catch any drips.
Diagram showing hands loosening a clamp on a hose connected to a radiator assembly, with parts labeled 1 and 2

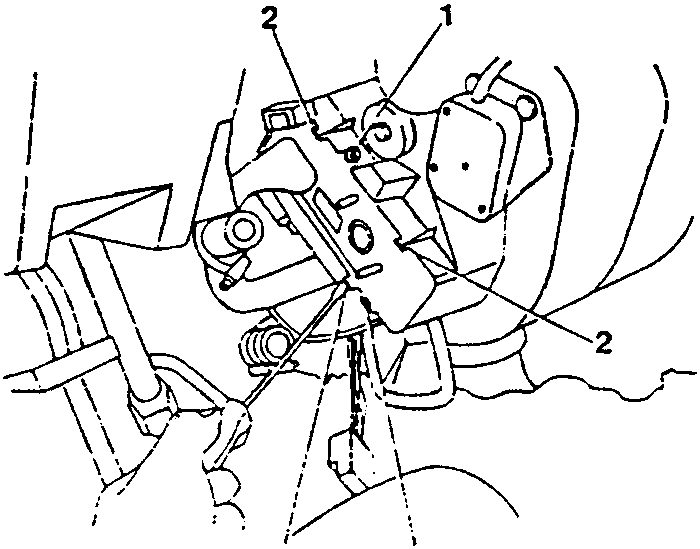

  1. Loosen the two screws securing the heating/cooling radiator to the assembly.
  2. Act on the tabs.
Diagram showing hands acting on tabs on a radiator assembly, with parts labeled 1 and 2

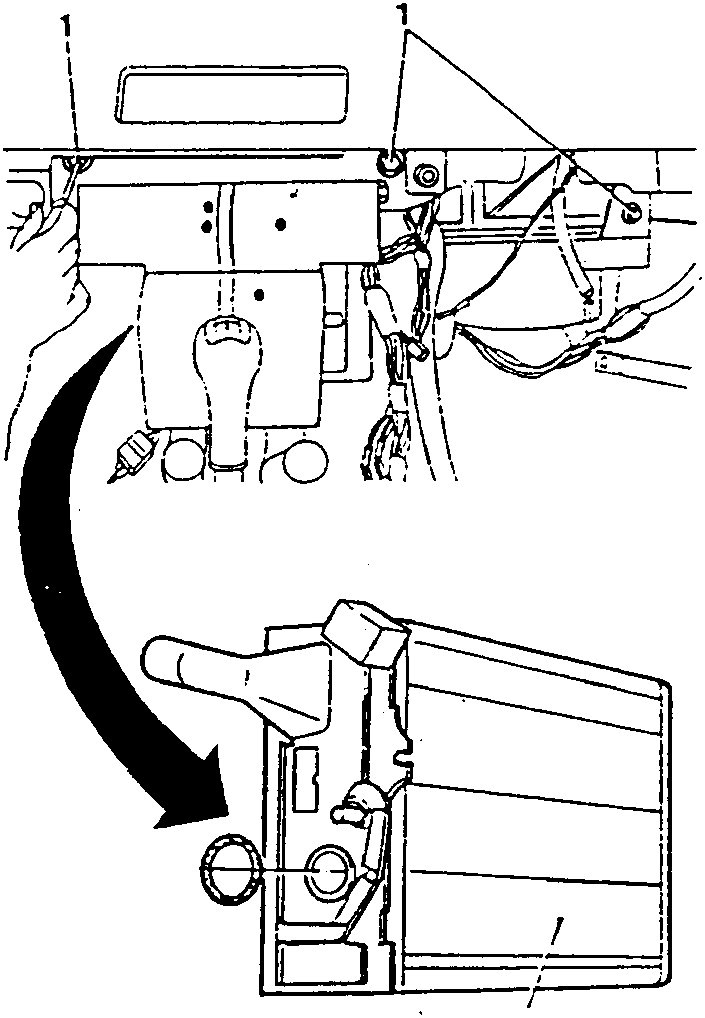

  1. Loosen the three upper screws securing the conveyor assembly to the frame.
  2. Remove the heating/cooling radiator from the driver's side by moving the entire unit and the main fusebox slightly downwards.
Diagram showing a large black arrow indicating downward movement of a unit, with parts labeled 1 and 2

Refitting

To refit, reverse the procedure followed for removal.
