Heating and ventilationRemoval

Removal

  1. Loosen the two screws securing the heating/cooling radiator on the left-hand side of the conveyor (driver's side).
  2. Remove the cover.
  3. Loosen the two clamps securing the engine coolant delivery hose to the tap.

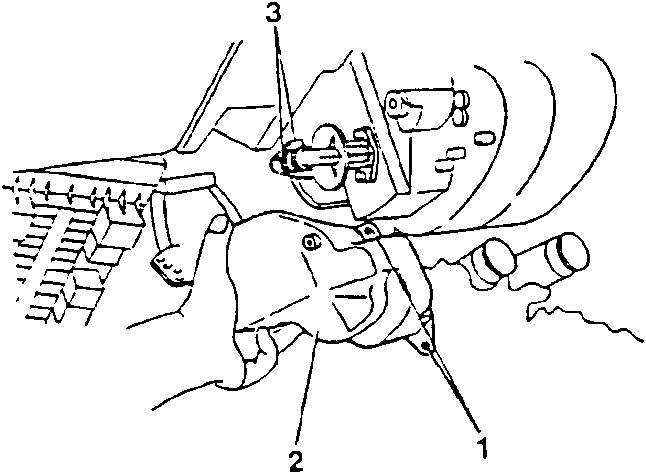

Diagram showing screws and cover removal from heating/cooling radiator on driver's side.
  1. Disconnect the hose from the tap taking care not to spill any liquid. Use a container to catch any drips.
  2. Unscrew the two nuts securing the tap to the radiator.
  3. Remove the tap together with the relative control levers.

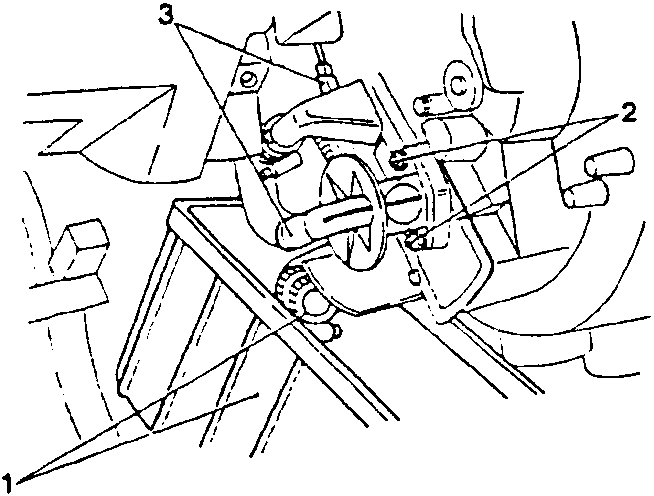

Diagram showing hose disconnection and tap removal from radiator.
  1. Unscrew the clamp from the upper engine coolant outlet hose.
  2. Disconnect the hose taking care not to spill any liquid. Use a container to catch any drips.

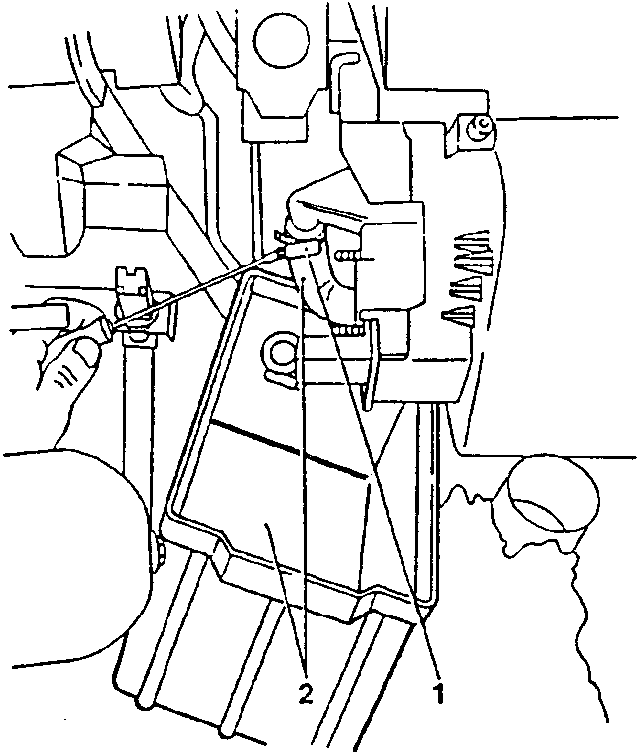

Diagram showing clamp removal and hose disconnection from upper engine coolant outlet.
  1. Loosen the two screws securing the radiator to the unit.
  2. Disengage the tabs.

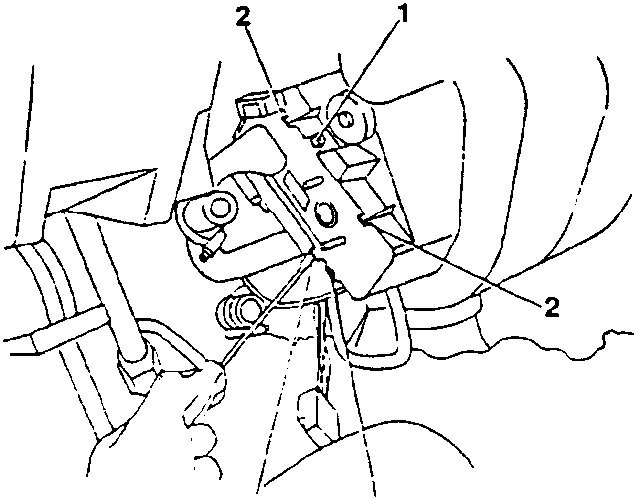

Diagram showing screw loosening and tab disengagement for radiator removal.
