Refitting

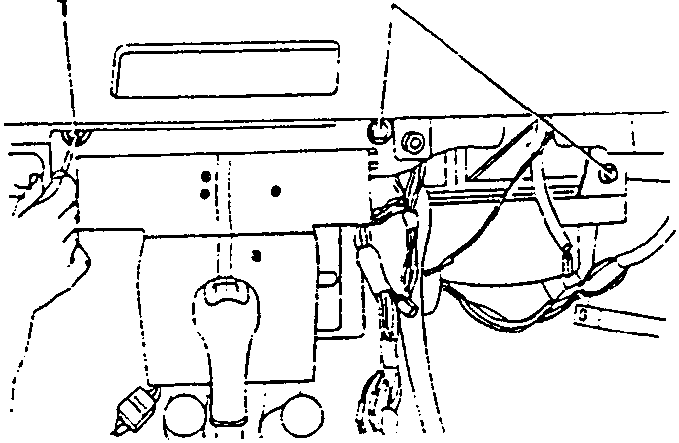

1. Loosen the upper screws securing the conveyor assembly to the frame. Pull out the radiator from the driver's side moving the assembly and the main fusebox downwards slightly.

Refitting

To refit, reverse the procedure followed for removal.

VENT CONTROL LINES

Removal

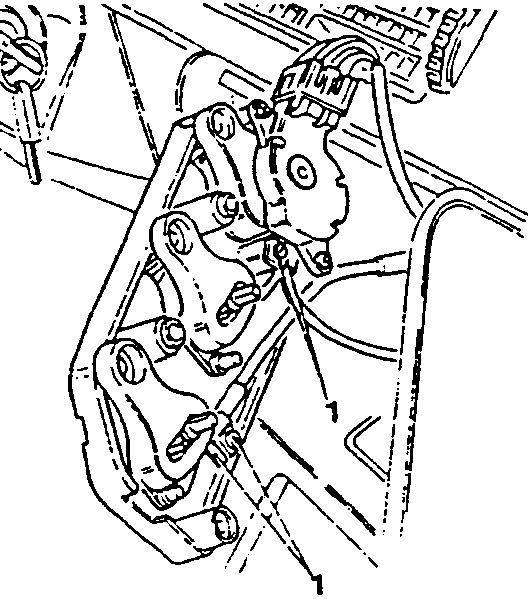

1. After dismantling the control assembly (see relative paragraph), loosen the screws securing the sheaths on the control panel and remove the clips securing the lines.

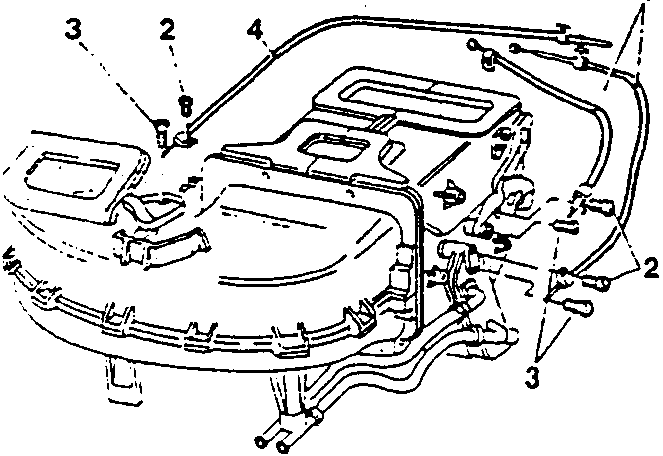

1. Disconnect the conveyor assembly (see relative paragraph).
2. Loosen the screws securing the sheath to the heater.
3. Loosen the screws securing the cables to the upper air distribution vents, external air flow regulation vent and heating/cooling radiator tap.
4. Remove the lines.

Refitting

To refit, reverse the procedure followed for removal.
