Removal

Removal

• First carry out the removal procedure given in the paragraph "CONVEYOR ASSEMBLY AND HEAT-ING-DISTRIBUTION UNIT - Removal".

1. Disconnect the connector from the electric motor controlling the external and recirculation air flow regulation vent.
2. Disconnect the connector from the electric fan.
3. Disconnect the two connectors from the electronic fan-speed variator.
4. Disconnect the connector from the upper mixed air temperature sensor.

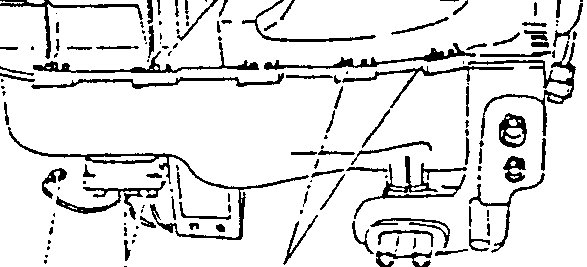

5. Loosen the screws (9 on the side and 3 on the front) securing the upper part of the conveyor and remove it using a thin-bladed screwdriver as a lever to disengage the tabs.

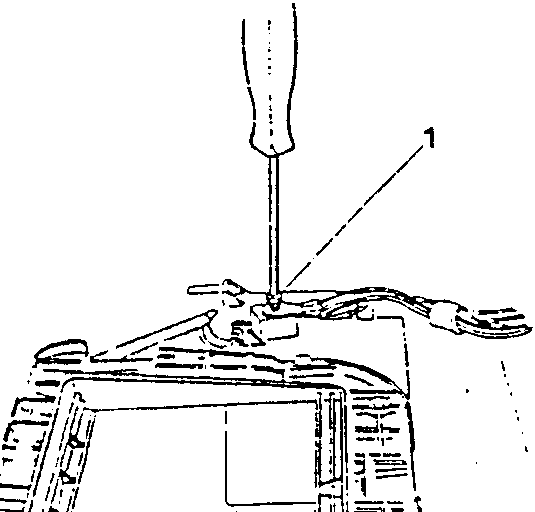

1. Loosen the screw securing the wiring.

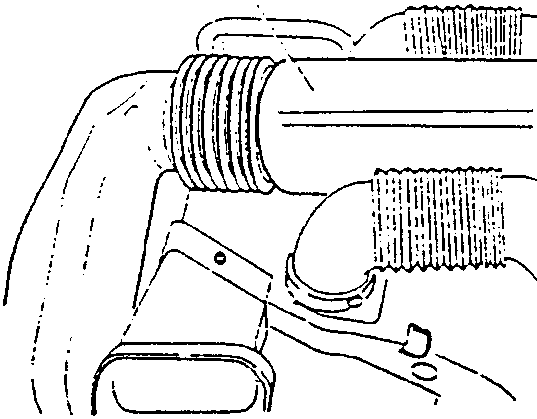

1. Disconnect the central tube carrying air to the tunnel outlets.

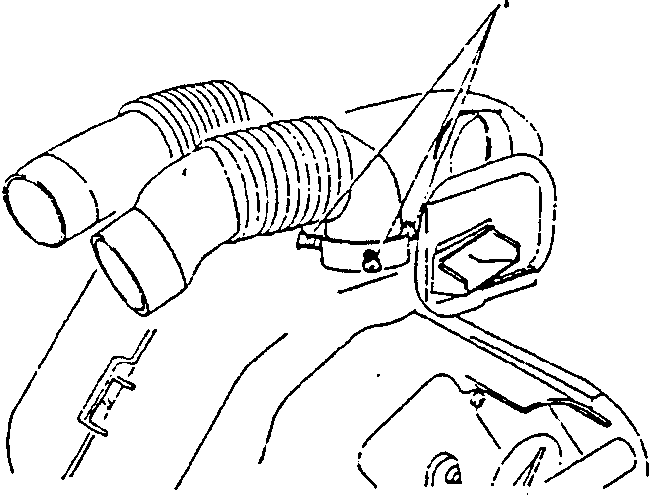

1. Loosen the screws securing the side outlets (three for each outlet).

1. Loosen the three screws securing upper part of the tube carrying air to the tunnel outlets.

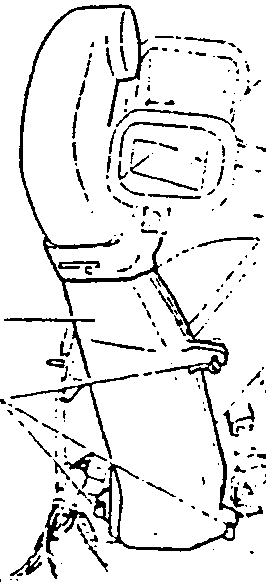

2. Remove the tube.
