Heating and ventilationRefitting

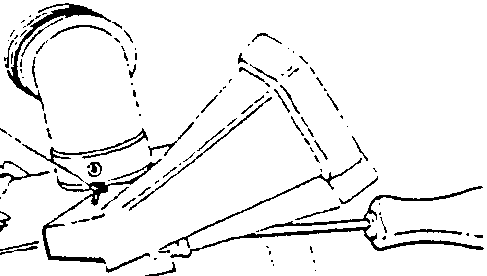

  1. Loosen the two screws and remove the right-hand side outlet.
Diagram showing loosening two screws to remove right-hand side outlet

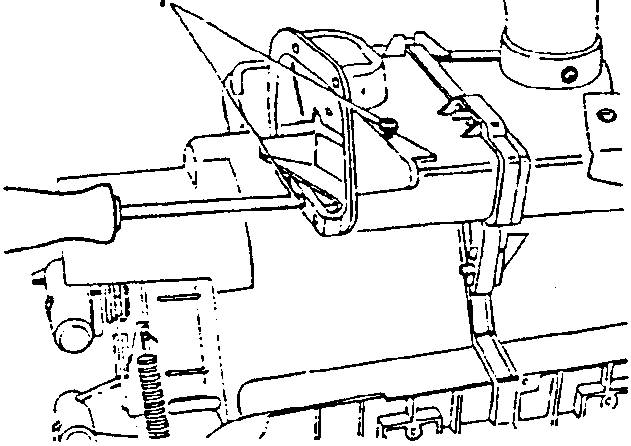

  1. Loosen the two screws and remove the left-hand side outlet.
Diagram showing loosening two screws to remove left-hand side outlet

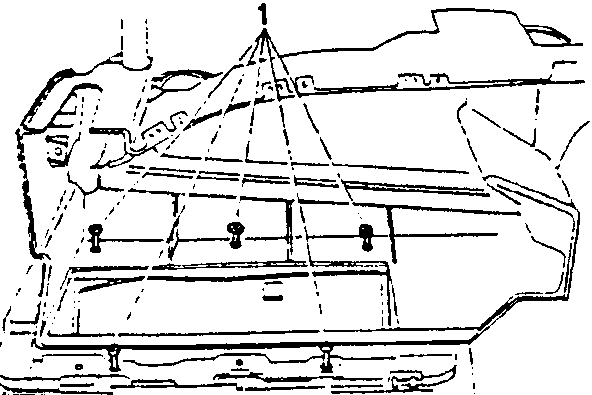

  1. Loosen the five screws securing the lower part of the conveyor to the heating-distribution unit and remove the unit.
Diagram showing loosening five screws to remove lower part of conveyor

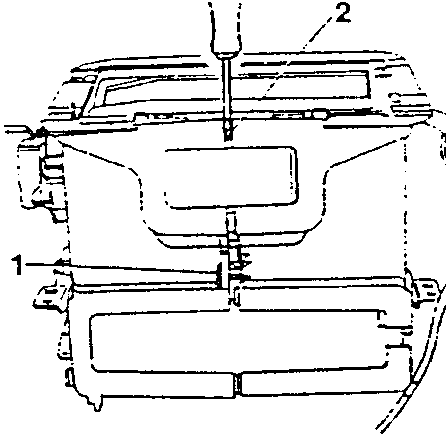

  1. Loosen the screws securing the two heating-distribution unit casing halves.
  2. Using a screwdriver as a lever, separate the two casing halves.
Diagram showing loosening screws and separating casing halves

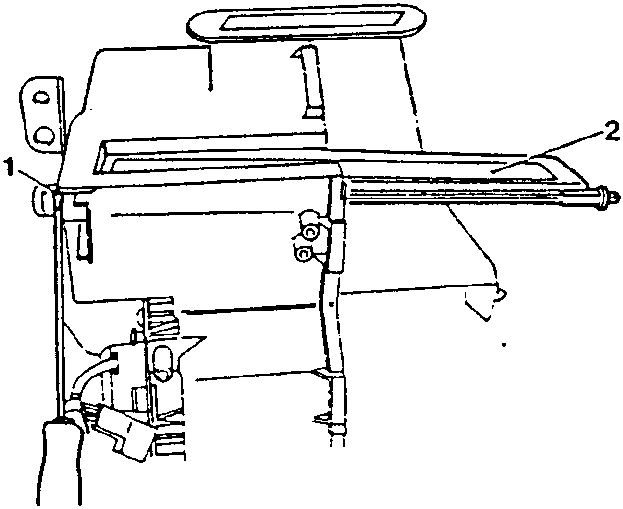

  1. Using a screwdriver as a lever release the upper air distribution vent from the actuator levers.
  2. Remove the upper air distribution vent.
Diagram showing releasing and removing upper air distribution vent

Refitting

To refit, reverse the procedure followed for removal.
