Removal/refitting (page 2 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Alternator

Ignition, starting and charging (Twin Spark)Removal/refitting · page 2 of 3

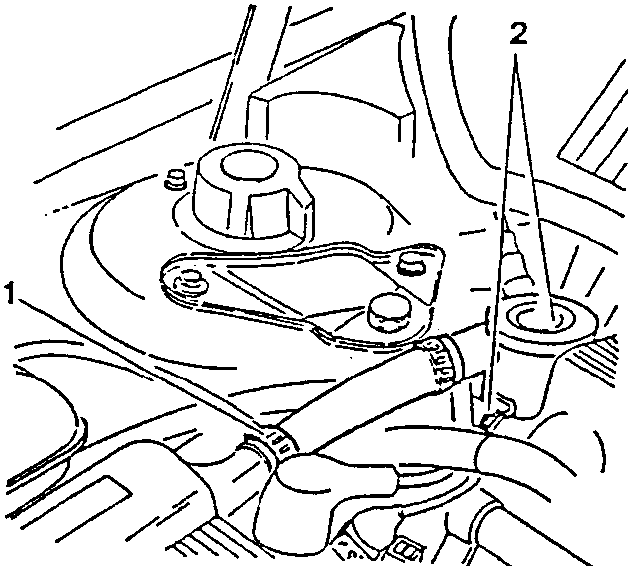

1. Disconnect the oil vapour recovery hose from the timing cover.
2. Unscrew the two screws securing the separator to the air intake box and raise it as far as possible.

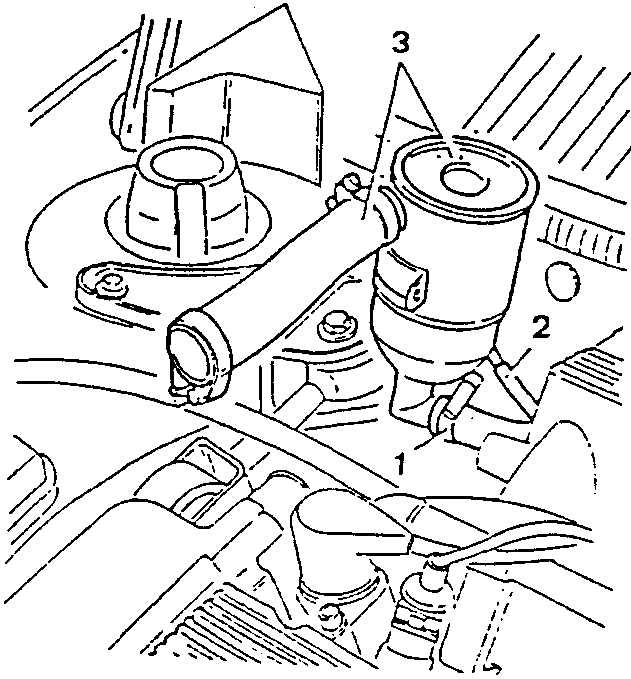

1. Disconnect the oil vapour recirculation hose from the separator.
2. Disconnect the oil recovery hose from the separator.
3. Disconnect the oil vapour support together with the oil vapour recovery hose and separate them on a bench.

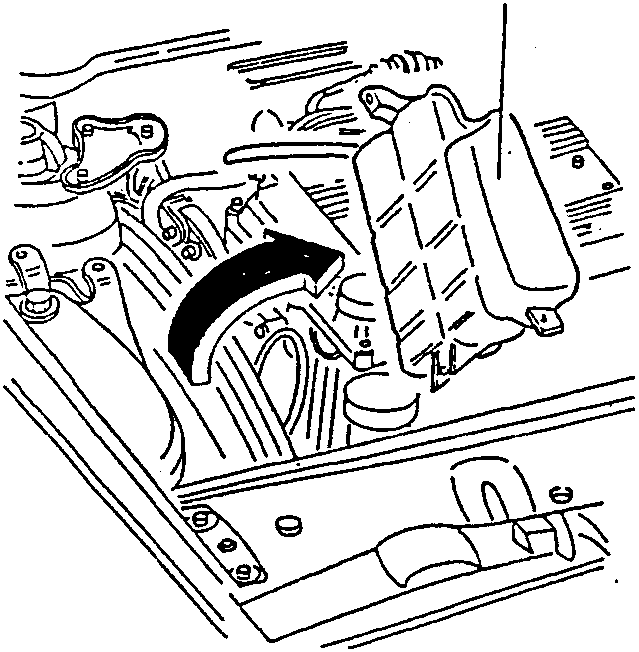

1. Unscrew the screws securing the expansion tank and, without disconnecting the hoses, move the tank to one side.

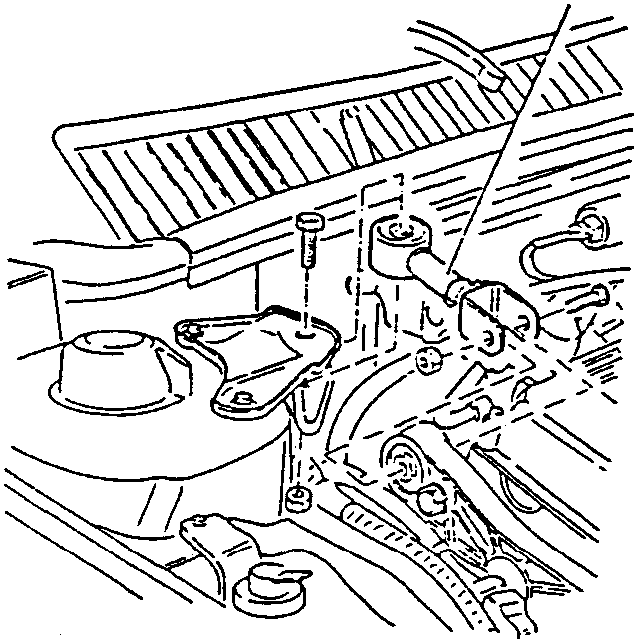

1. Unscrew the two bolts and remove the damping rod.

05 Engine
