Ignition, starting and charging (Twin Spark)Removal/refitting · page 3 of 3

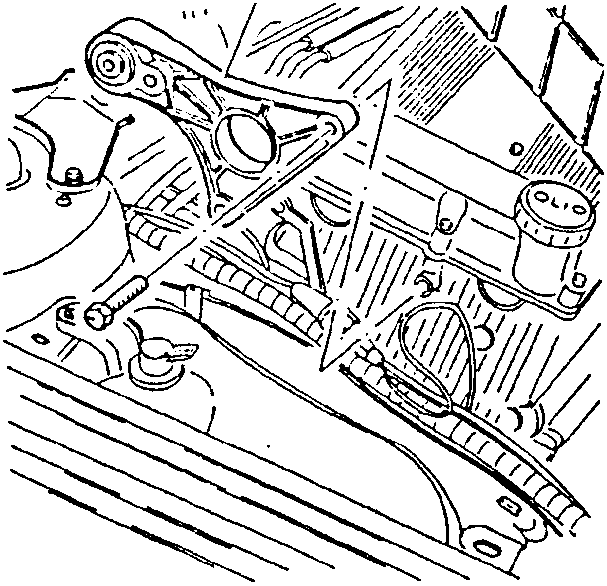

1. Remove the damping rod support - engine side.

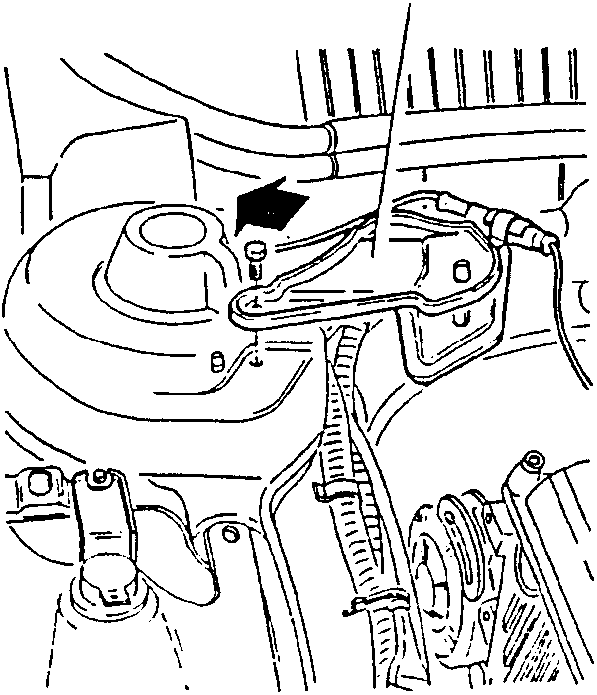

1. Remove the damping rod support bracket - body side, and, without disconnecting the ABS sensor connection, move it to one side.

• Remove the front right-hand wheel.
• Remove the spray-guard from the right-hand wheel-housing.

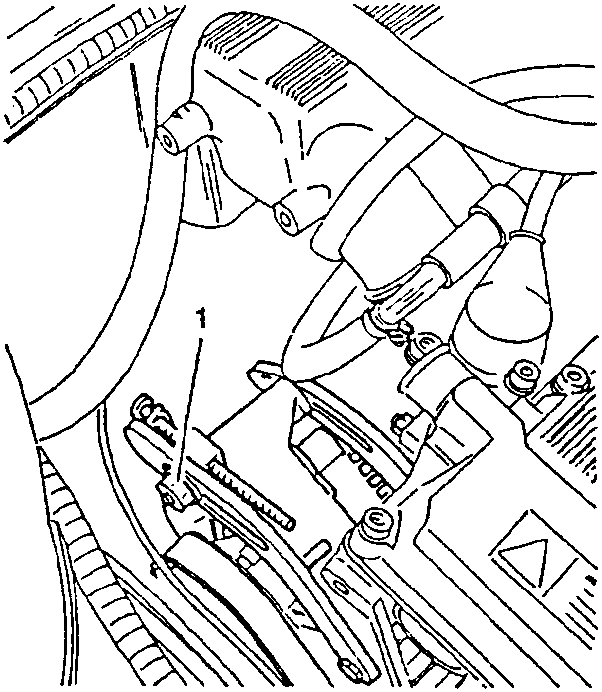

1. Loosen the upper screw securing the alternator.

• Raise the vehicle.

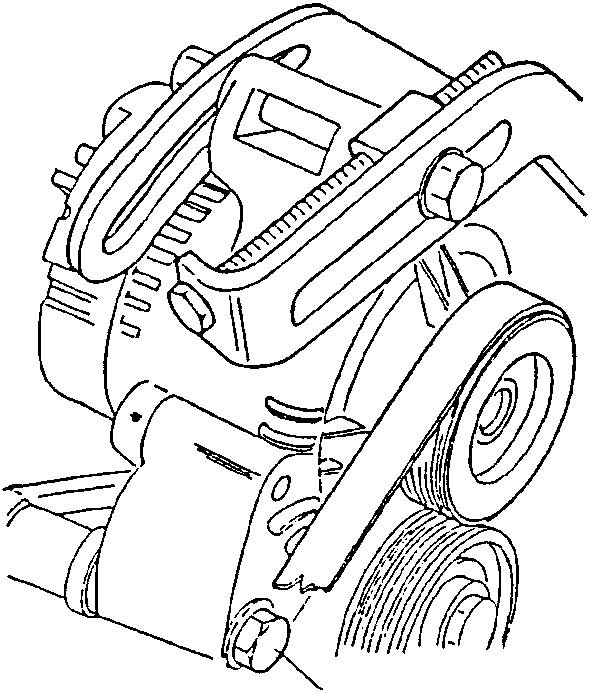

• Unscrew the lower screw securing the alternator.
