Ignition, starting and charging (Twin Spark)Due for publication

Lower the vehicle.

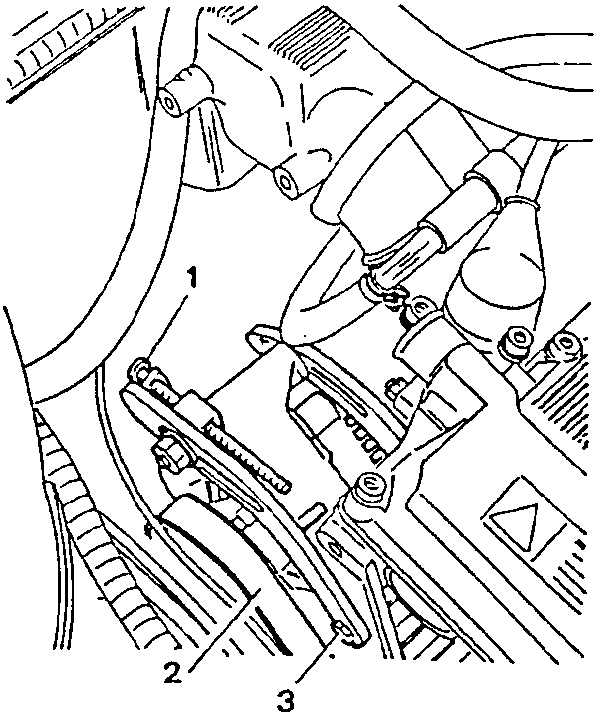

1. Slacken the alternator-compressor drive belt by acting on the micrometric tensioner.
2. Remove the drive belt from the alternator.
3. Unscrew the screw securing the alternator upper support brackets.

1. Part 1
2. Part 2
3. Part 3

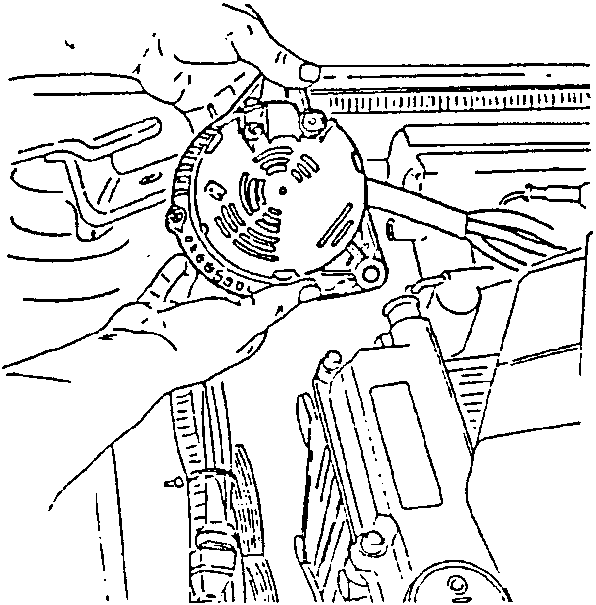

1. Remove the bolts securing the alternator and remove the alternator after disconnecting the electrical connections.
