Ignition, starting and charging (Twin Spark)Removal/refitting · page 2 of 3

1. Disconnect the air intake hose from the constant idle speed actuator.

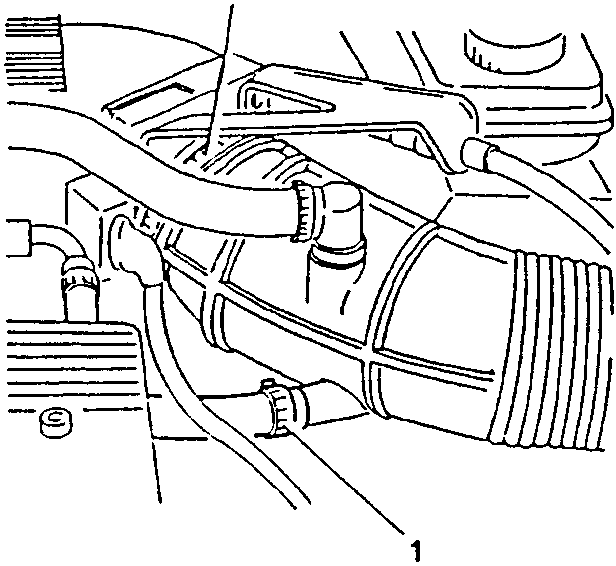

1. Disconnect oil vapour recirculation hose from the corrugated sleeve.
2. Loosen the clamps securing the corrugated sleeve to the air intake box and air-flow meter.

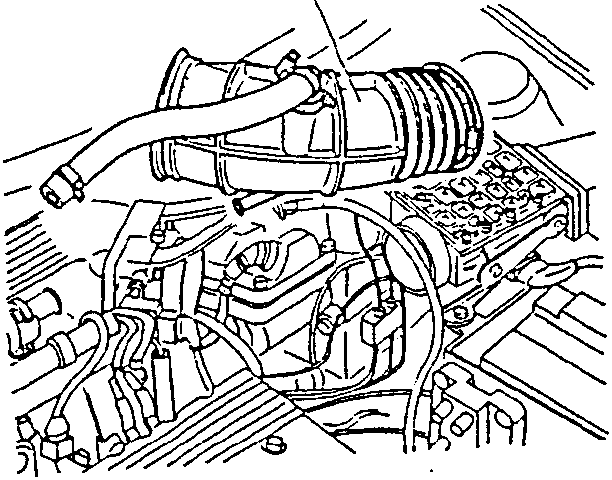

1. Remove the corrugated sleeve together with the constant idle speed actuator air intake hose.

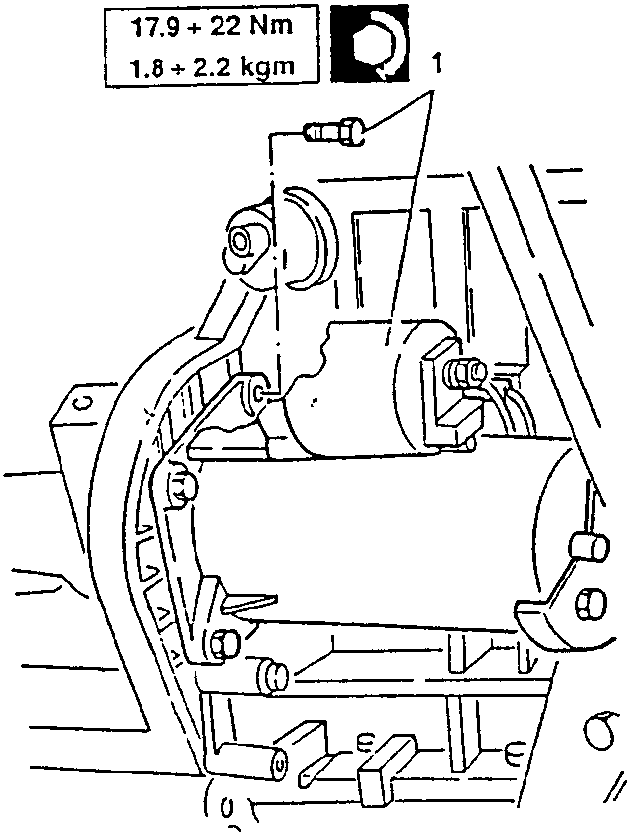

1. Unscrew the upper screw securing the starter motor to the gearbox.

17.9 ÷ 22 Nm
1.8 ÷ 2.2 kgm
