Removal/refitting (page 3 of 3)

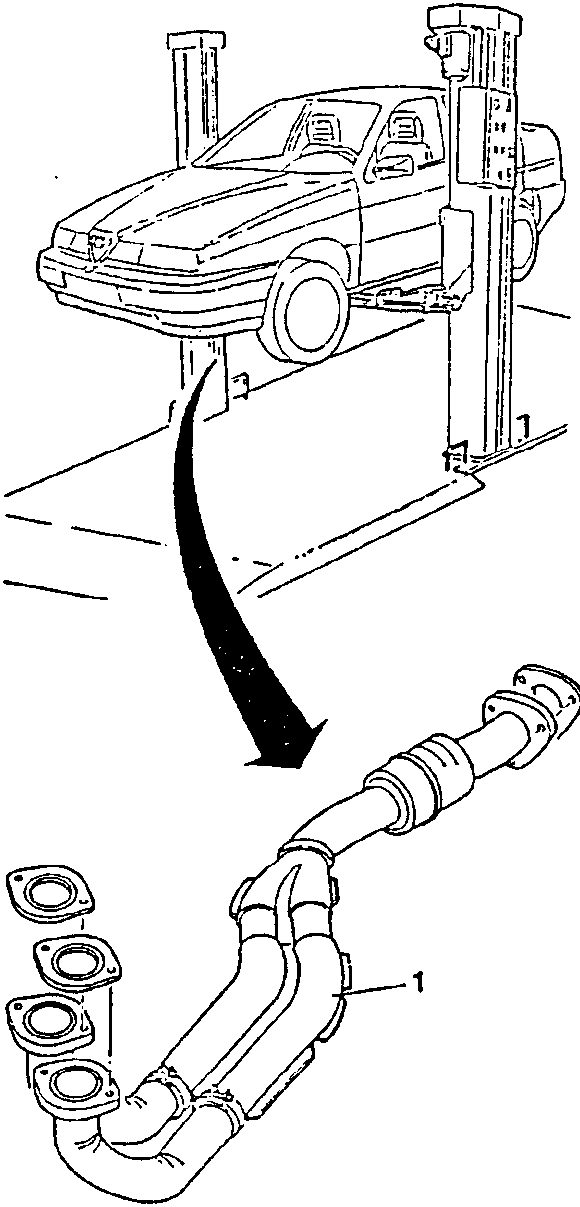

• Raise the vehicle.

1. Disconnect the forward section of the exhaust pipe.

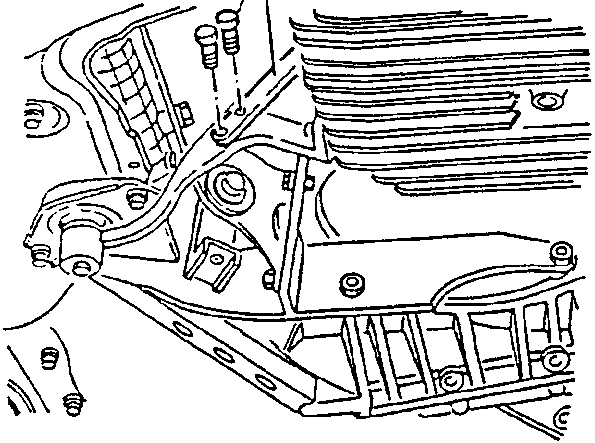

1. Unscrew the two screws securing the starter motor support bracket to the engine support.

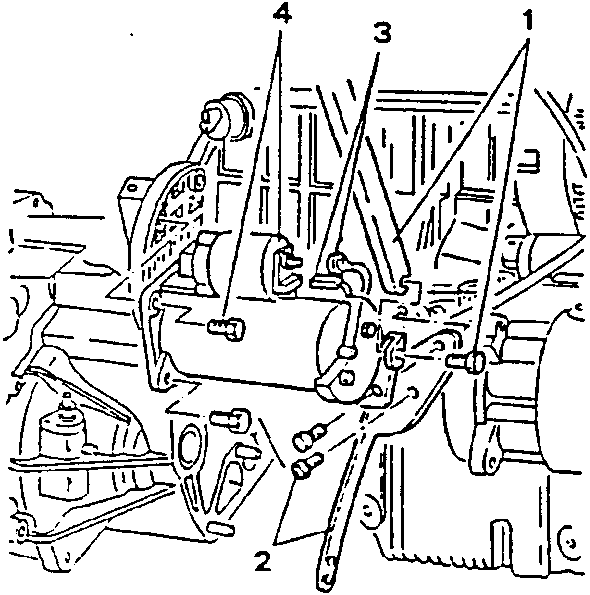

1. Unscrew the screw securing the air intake box support strut to the starter motor support bracket.
2. Unscrew the two nuts securing the engine support bracket to the engine block.
3. Disconnect the electrical connections from the starter motor.
4. Unscrew the two remaining screws securing the starter motor to the gearbox and remove the starter motor.

• Remove the engine support brackets.

17.9 ÷ 22 Nm
1.8 ÷ 2.2 kgm
