Removal/refitting (page 2 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Starter motor

Ignition, starting and charging (V6)Removal/refitting · page 2 of 3

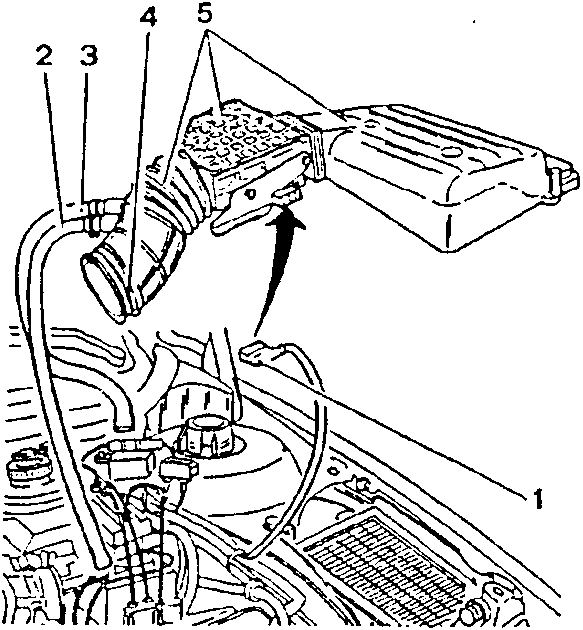

1. Disconnect the electrical connection from the air flow meter.
2. Disconnect oil vapour recirculation pipe from the oil vapour separator.
3. Disconnect the air intake box intake hose from the constant idle speed actuator.
4. Slacken the clamp securing the corrugated sleeve to the air intake box.
5. Remove air cleaner cover, air flow meter and corrugated sleeve assembly.

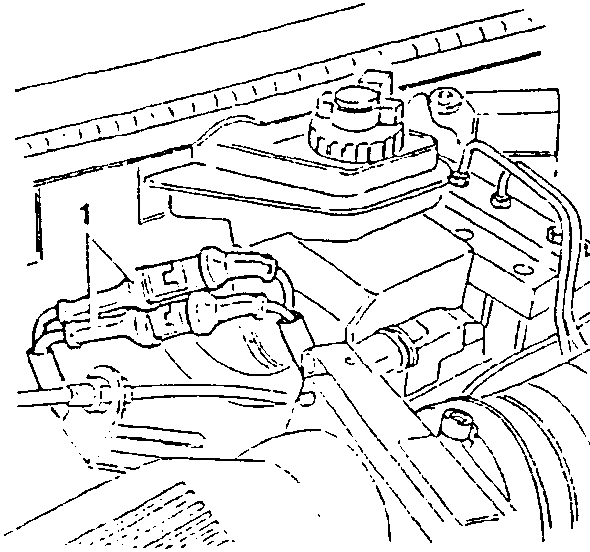

1. Disconnect the two electrical connections from the lambda probe.

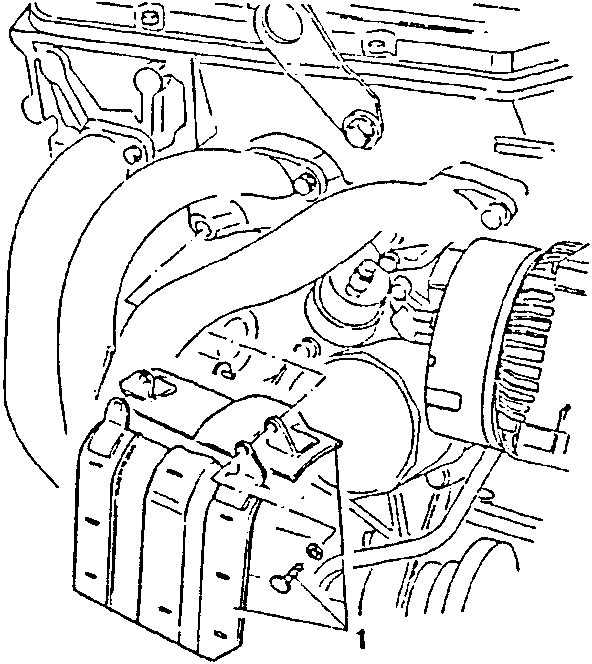

1. Operating from the engine compartment, unscrew the two screws securing the heat shielding of the starter motor.

• Raise the vehicle.

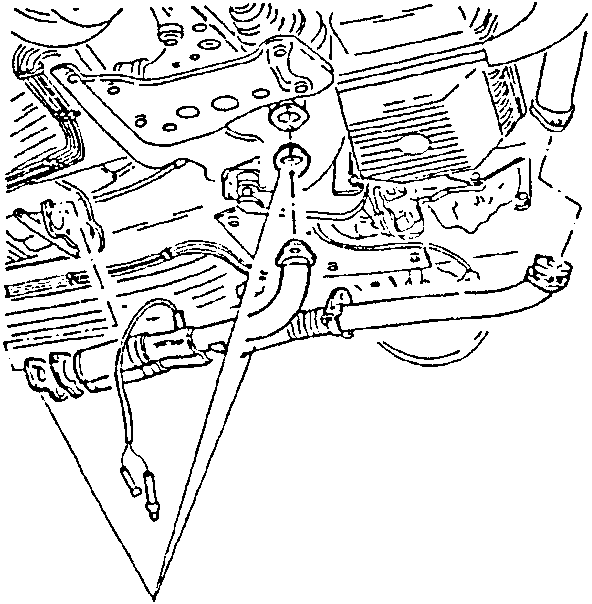

1. Disconnect the forward section of the exhaust pipe and remove it together with the relative gaskets.
