Removal and refitting

REMOVAL AND REFITTING

Removal

• The control unit is located in the engine compartment under the windscreen wiper unit.
• Disconnect and remove the battery and the battery support. (see: GR. 40).
• Remove air-flow meter (see: REPAIR INSTRUCTIONS - ENGINES - GROUP 04).

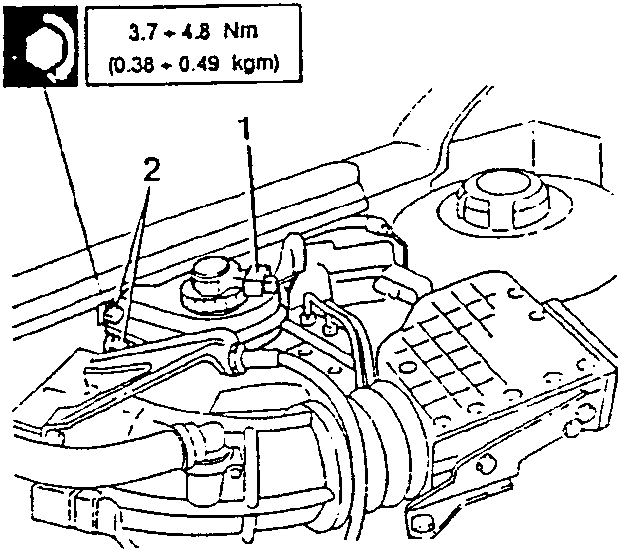

1. Disconnect the connector from the brake-clutch fluid level sensor.
2. Loosen the two screws securing the brake-clutch fluid reservoir.

3.7 ÷ 4.8 Nm
(0.38 ÷ 0.49 kgm)

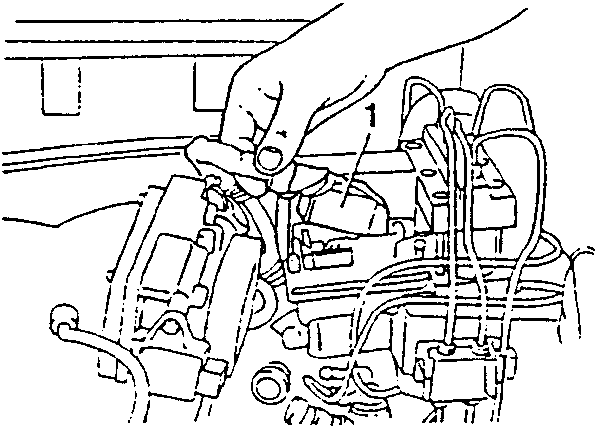

1. Remove the electrical connector comb from the control unit.

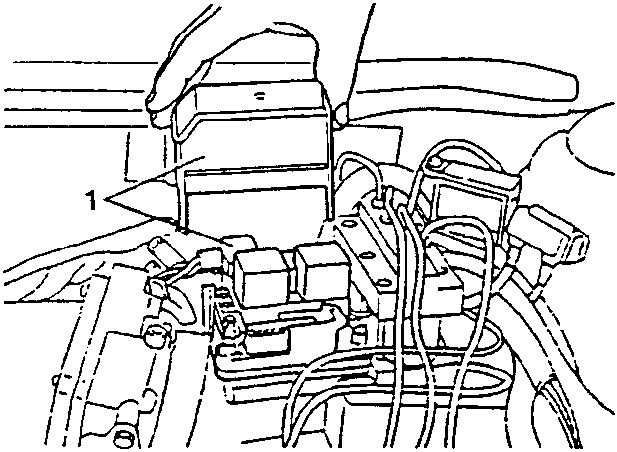

2. Loosen the screw securing the cover of the electronic control unit and remove the four-pin connector.

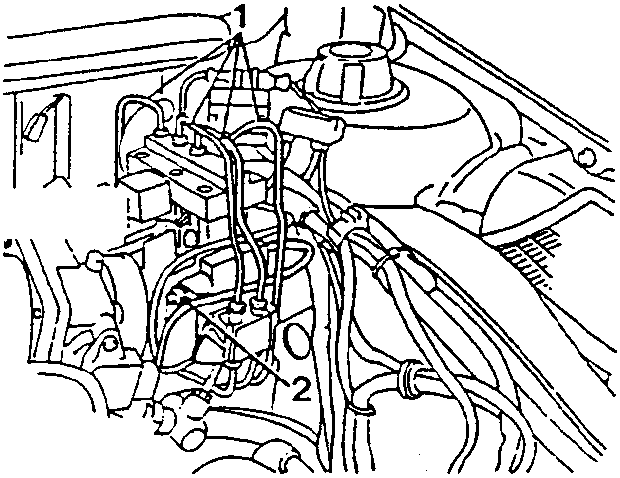

1. Disconnect the hydraulic connections from the control unit and from the four-way distributor.
2. Loosen the three nuts of the control unit support and remove the unit.

3.8 ÷ 4.9 Nm
(0.39 ÷ 0.5 kgm)

Refitting

To refit, reverse the procedures followed for removal.

Supplementary indications for refitting

• Tighten the screws and nuts to the correct torque.
