REMOVAL AND REFITTING

Removal

  1. Remove the relay cover by lifting it upwards.
  2. Disconnect the two relays.

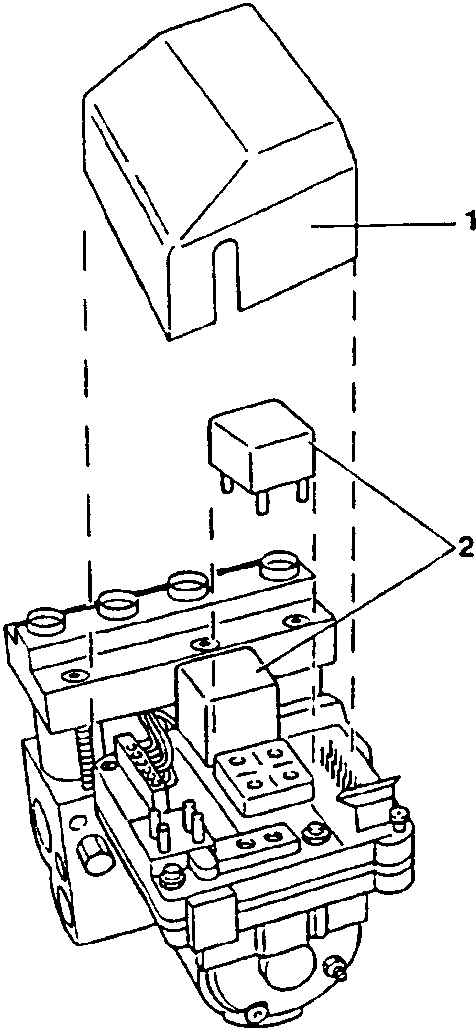

Diagram showing removal of relay cover and relays from ABS control unit relay assembly.

Refitting

To refit, reverse the procedures followed for removal.

DOOR LOCKING DEVICE CONTROL UNIT

REMOVAL AND REFITTING

Removal

  1. The control unit is located in the main fusebox. To remove pull upwards.

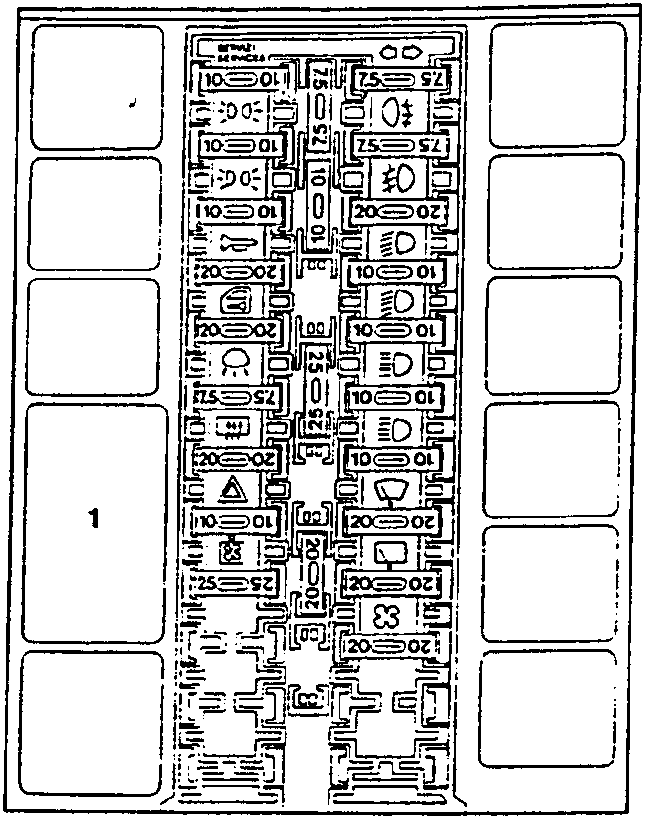

Diagram showing location of door locking device control unit within main fusebox, with fuse layout and numbered positions.

Refitting

To refit, reverse the procedures followed for removal.
