Alfa Romeo 155 Factory Service Manual (1992-1998)59 · Instrument panel and electronic instruments
59 · Electrical

And electronic instruments

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Heating-ventilation control unit › And electronic instruments
Instrument panel and electronic instrumentsAnd electronic instruments

AND ELECTRONIC INSTRUMENTS

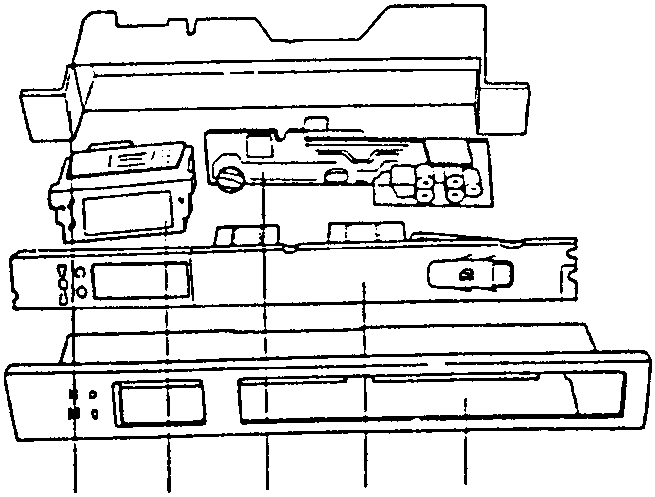

Disassembled Check Panel

Disassembled Check Panel with numbered parts
  1. Rear cover
  2. Clock
  3. Printed circuit
  4. Check Panel display glass
  5. Front moulding

HEATING-VENTILATION CONTROL UNIT

REMOVAL AND REFITTING

Removal

  1. Remove the ashtray.
  2. Loosen the three screws securing the Check Panel.
  3. Remove the Check Panel.
  4. Disconnect the two connectors and remove the Check Panel.

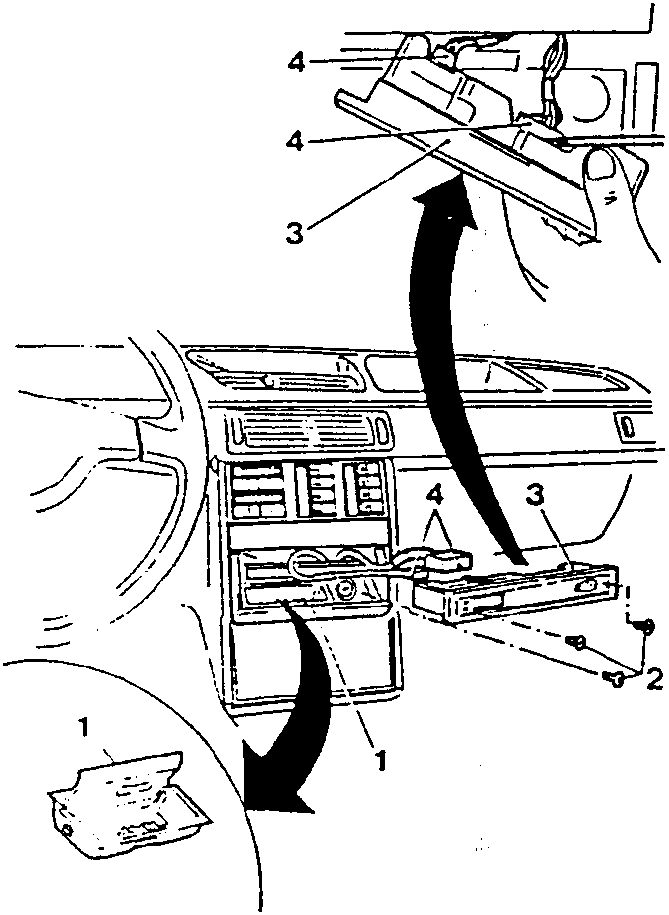

Illustration showing removal of Check Panel from dashboard
