Alfa Romeo 155 Factory Service Manual (1992-1998)59 · Instrument panel and electronic instruments
59 · Electrical

Removal and refitting

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Replacing bulbs and clock › Removal and refitting
Instrument panel and electronic instrumentsRemoval and refitting

REMOVAL AND REFITTING

Removal

  1. Remove the ashtray.
  2. Loosen the three screws securing the Check Panel.
  3. Remove the Check Panel.
  4. Disconnect the two connectors and remove the Check Panel.

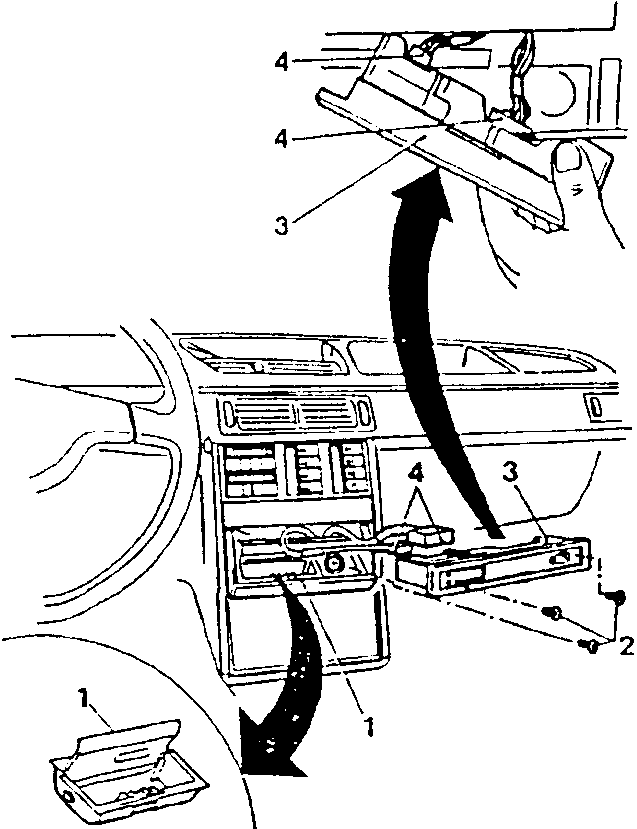

Diagram showing removal of Check Panel with arrows indicating direction of pull and labeled parts 1, 2, 3, 4.

Refitting

To refit, reverse the procedures followed for removal.

REPLACING BULBS AND CLOCK

  1. Loosen the eight screws securing the rear cover of the Check Panel and remove it.

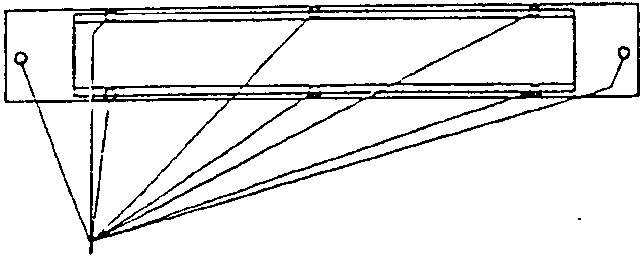

Diagram showing the rear cover of the Check Panel with eight screws indicated.
  1. The panel has three bulbs lighting the clock, vehicle outline and ashtray. For the first two, remove the rear cover to reach the bulbs. Remove by rotating anticlockwise.
  2. To replace the ashtray light, loosen the two screws securing the printed circuit and remove it. Rotate the bulb anticlockwise to remove.
  3. The clock is fitted to the Check Panel. Withdraw it from its seating and replace.

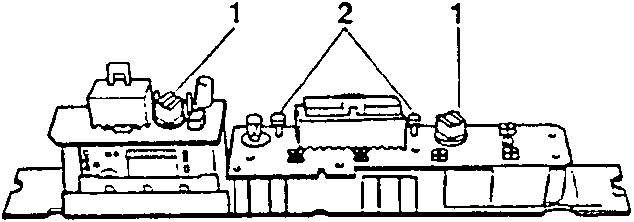

Diagram showing the printed circuit board with labeled parts 1, 2, 3.

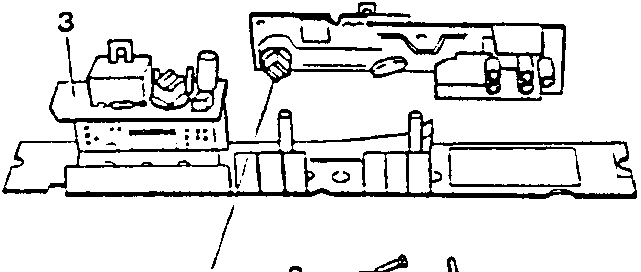

Diagram showing the clock mechanism with labeled parts 1, 2, 3.
