Alfa Romeo 155 Factory Service Manual (1992-1998)63 · Interior trim
63 · Body & interior

Removal and installation

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Floor trim › Removal and installation
Interior trimRemoval and installation · page 1 of 2

REMOVAL AND INSTALLATION

  • Disconnect the negative load (-) from the battery.
  • Remove the front seats (see: FRONT SEATS).
  • Remove the rear bench seat (models with a single rear seat) or the complete rear seats (models with separate rear seats) (see: REAR SEATS).
  1. Loosen the five screws securing one of the rear finishing strips to the floor and remove it.
  2. Proceed likewise for the other finishing strip.
  3. Loosen the three screws and disconnect the button securing one of the front finishing strips to the floor and remove it.
  • Proceed likewise for the other front finishing strip.
  1. Loosen the two screws securing one of the lower central pillar coverings and remove the covering.
  2. Proceed likewise for the other covering.
  3. Remove the central tunnel console (see: CENTRAL TUNNEL CONSOLE).
  4. Remove the air vent from the tunnel (see: TUNNEL AIR VENT).
  1. Loosen the two screws securing the front seatbelts to the floor panel.
  1. Loosen the two screws securing the rear air vent.
  1. Remove the air vent by sliding it off the air ducts located under the floor trim.
  2. Proceed likewise for the other air vent.

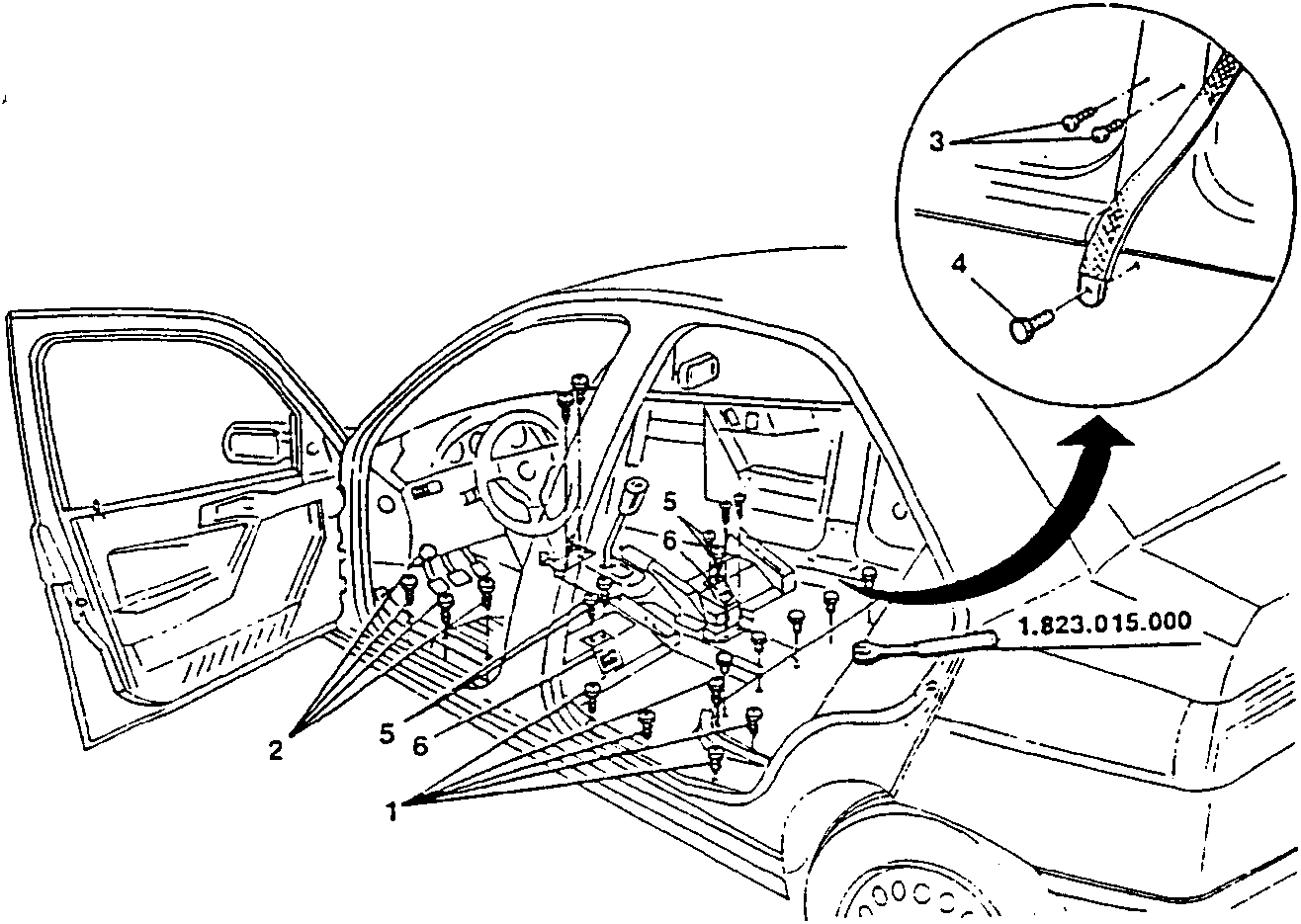

Diagram showing interior of car with numbered parts and a close-up of screws and a tool labeled 1.823.015.000
  1. Part 1
  2. Part 2
  3. Part 3
  4. Part 4
  5. Part 5
  6. Part 6
