Removal and installation (page 2 of 2)

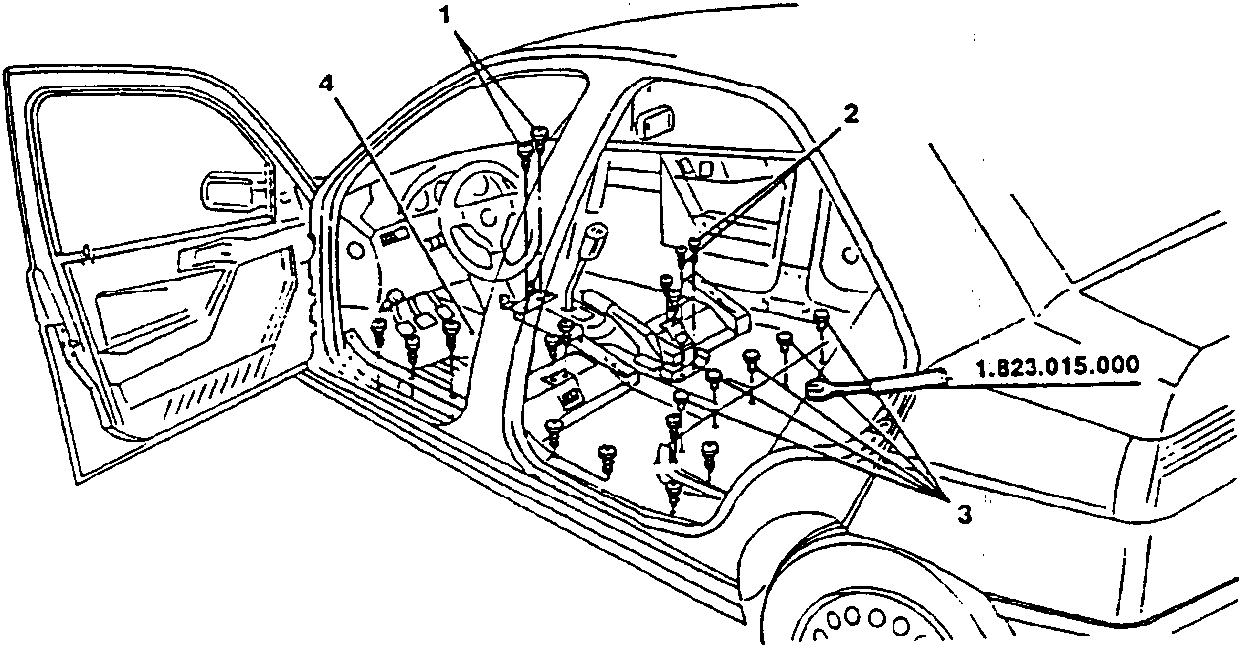

1. Loosen the two screws securing the central tunnel console front bracket to the floor and remove the bracket.
2. Loosen the two screws securing the central tunnel console rear bracket to the floor and remove it.
3. Using tool 1.823.015.000 detach the five buttons securing the floor trim to the floor.
4. Remove the trim from the vehicle.
   • Remove the IAW control unit (see: GR. 43 - ELECTRICAL AND ELECTRONIC COMPONENTS).
   • Remove the central console and trim below dashboard (see: CENTRAL CONSOLE AND TRIM UNDER DASHBOARD).

Working from the engine compartment:

• Remove the relay box clamp (see: GR. 43 - ELECTRICAL AND ELECTRONIC COMPONENTS).
• Remove the heating-ventilation unit (see: GR. 80 - HEATING AND VENTILATION).
• Remove the floor trim beginning from the pedal unit.

Refit by reversing the procedure followed for removal and:

• For components and/or parts dealt with in other pages or in other groups refer to these for refitting operations and advice.
• After refitting the bolts securing the seatbelts, tighten them to the correct torque.

1. Component 1
2. Component 2
3. Component 3
4. Component 4
