Glovebox

To install, reverse the order of the procedures used for removal and note the following:

• Before reconnecting the electrical connectors, check that the electric cables are correctly inserted.

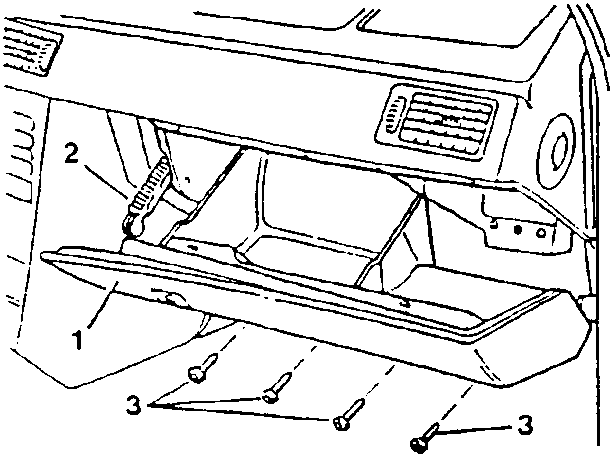

GLOVEBOX

REMOVAL AND INSTALLATION

• Disconnect the negative cable from the battery. Working from the passenger side:

1. Open the glovebox.
2. Unhook the rack supporting the glovebox.
3. Close the glovebox, unscrew the four outer screws securing the glovebox to the dashboard and remove the glovebox.

Refit by reversing the procedure followed for removal and:

• before reconnecting the electrical connectors check that the electrical cables are correctly fitted into them.

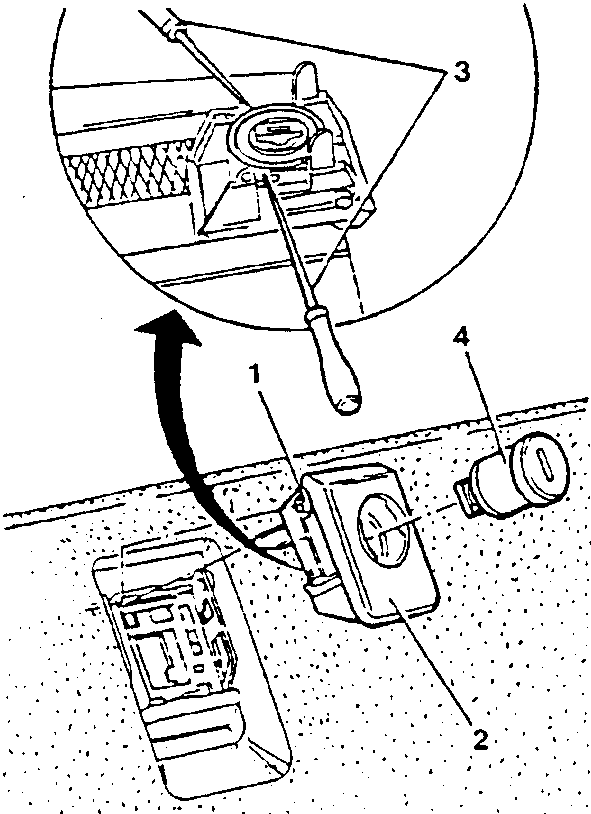

GLOVEBOX LID LOCK

REMOVAL AND INSTALLATION

1. Raise the glovebox handle and, by means of a small screwdriver, remove the pins securing handle to lid.
2. Remove the handle.
3. By means of two drifts, act on the two retainers of lid lock.
4. Remove the lid lock.

Refit by reversing the order of removal.
