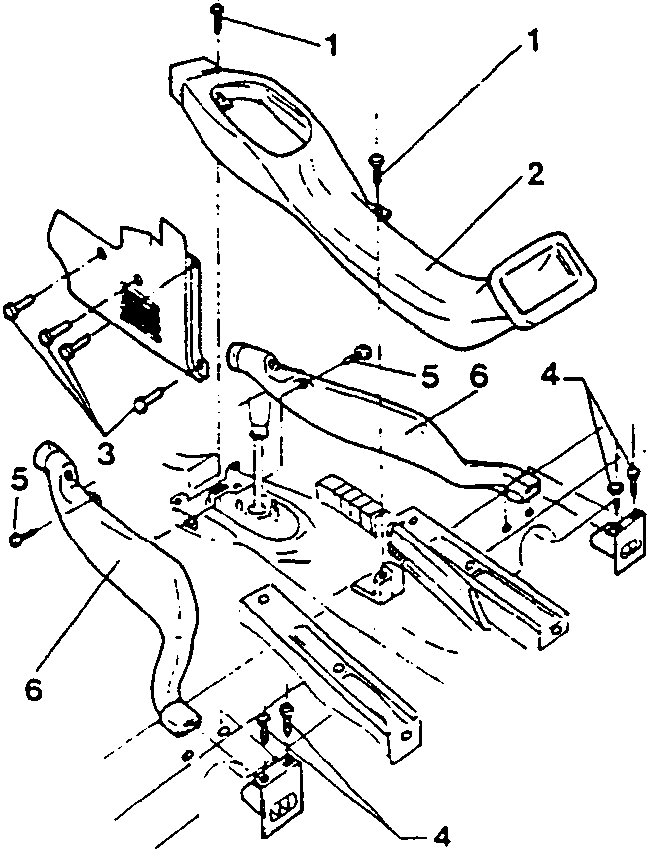

Removal and installation

REMOVAL AND INSTALLATION

• Disconnect the negative lead (-) from the battery.
• Remove the central tunnel console (see: CENTRAL TUNNEL CONSOLE).

1. Unscrew the two screws securing the tube under the tunnel to the floor.
2. Remove the tube sliding it off the under dashboard connection.
3. Unscrew the eight screws securing the bulkhead air vent under the dashboard.
4. Remove the front seats (see: COMPLETE FRONT SEATS).
5. Unscrew the four screws securing the rear air vents and remove the vents.
6. Remove the floor trim in order to gain access to the lateral pipes.
7. Unscrew the two screws securing the lateral rear air pipes.
8. Remove the lateral pipes.

1. Tube
2. Deflector grill
3. Mounting bracket
4. Lateral pipe
5. Mounting screw
6. Mounting bracket

To install, reverse the procedures followed for removal observing the following:

• For components dealt with in other pages of this and other groups, refer to the applicable instructions and procedures (see: CENTRAL TUNNEL CONSOLE; COMPLETE FRONT SEATS).

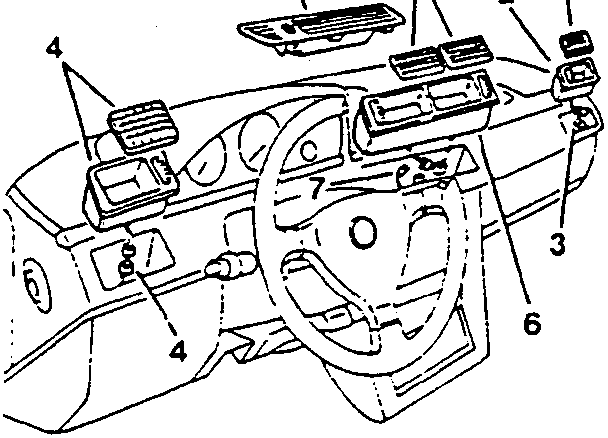

DASHBOARD AIR VENTS

REMOVAL AND INSTALLATION

• Disconnect the negative lead (-) from the battery.

NOTE: Use tool No. 1.823.014.000 as a lever and act on the tabs securing the air vents.

1. Operating on the right-hand side of the dashboard, prise off the deflector grill.
2. Remove the air vent by applying leverage to the tabs on the air vent.
3. Disconnect the air vent lamp supply connector.
4. Operate in the same fashion for the left-hand vent.
5. Remove the deflector grill by applying leverage to the tabs.
6. Apply leverage to the tabs securing the central air vents to the dashboard and remove the vents.
7. Disconnect the air vent lamp supply connector.
8. Apply leverage and remove the upper dashboard vent.

1. Deflector grill
2. Air vent
3. Mounting screw
4. Mounting bracket
5. Mounting screw
6. Mounting bracket
7. Deflector grill
8. Mounting screw
