Removal and refitting

REMOVAL AND REFITTING

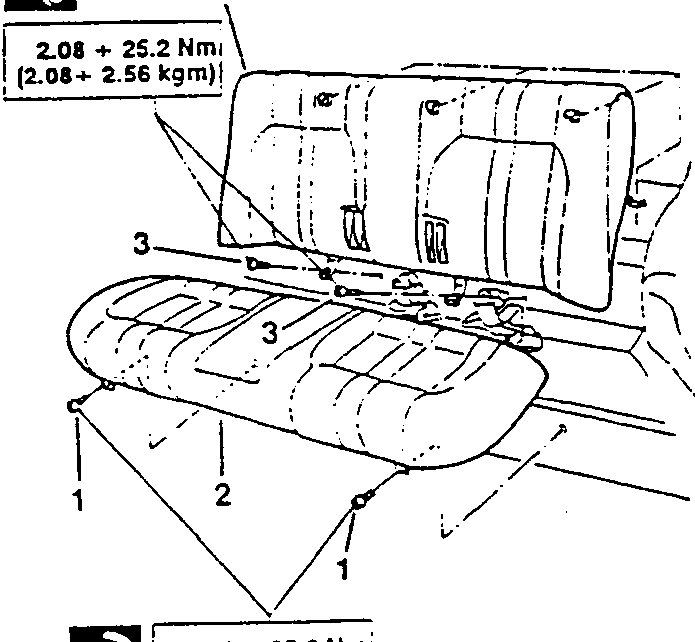

1. Unscrew the two screws securing the seat to the vehicle platform.
2. Disengage the seat from the bracket located on the lower part of the backrest and remove it.
3. Unscrew the two screws securing the backrest to the platform.
4. Disengage the backrest hooks from the seatings on the rear shelf and remove the backrest.

To install, reverse the procedures followed for removal.

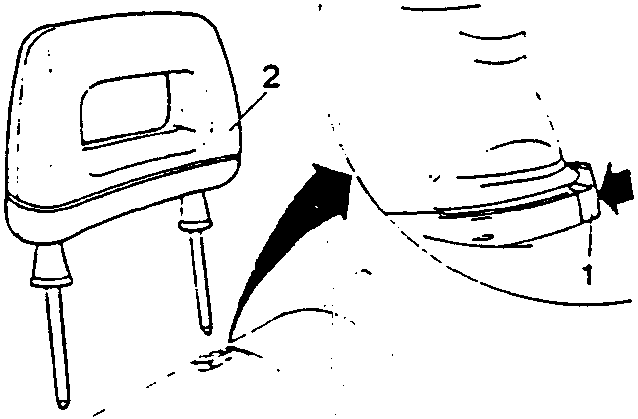

HEADRESTS

Removal and refitting

1. Press on the pin locking devices and disengage them.
2. Remove the headrest.

To install, reverse the procedure followed for removal.

2.08 ÷ 25.2 Nm
2.08÷ 2.56 kgm

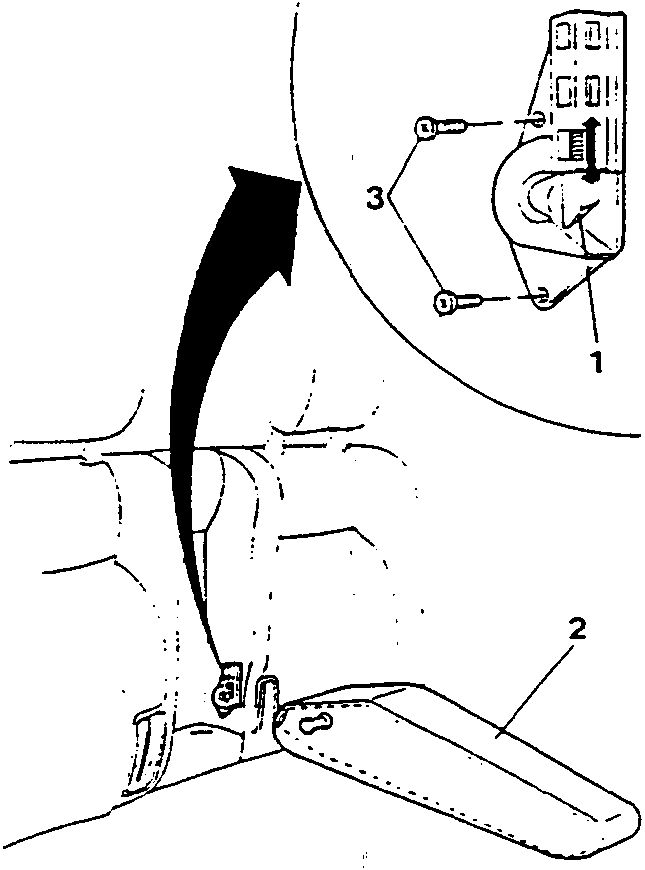

ARMREST

Removal and refitting

1. Using a screwdriver, raise the locking pins of the armrest.
2. Remove the arm rest.
3. Unscrew the four screws securing the pin seatings to the backrest and remove the seatings.

To install, reverse the procedure followed for removal.
