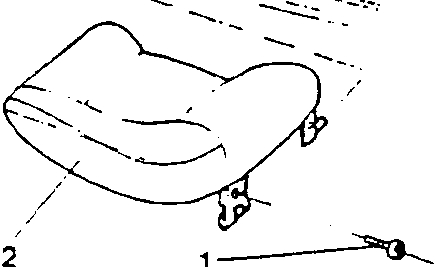

(split seat version)

(split seat version)

REMOVAL AND REFITTING

1. Unscrew the two screws securing the seat hinges (outer side of vehicle) to the platform.
2. Remove the seats by withdrawing the pins from the hinges on the inner side of the vehicle.
3. Unscrew the screw securing the backrest central hinge to the platform (passenger compartment side).
4. Tip the backrests and remove the five buttons securing the luggage compartment trim to the backrests.
5. Unscrew the screw securing the backrest central hinge to the platform (luggage compartment side).
6. Unscrew the two screws securing the hinge on the outer side of the vehicle to the wheel housing and remove the backrests.
7. Unscrew the screw securing the central seat hinge to the platform and remove the hinge.
8. Unscrew the four screws securing the backrest retaining pins.
9. Remove the pins.

To install, reverse the procedure followed for removal.

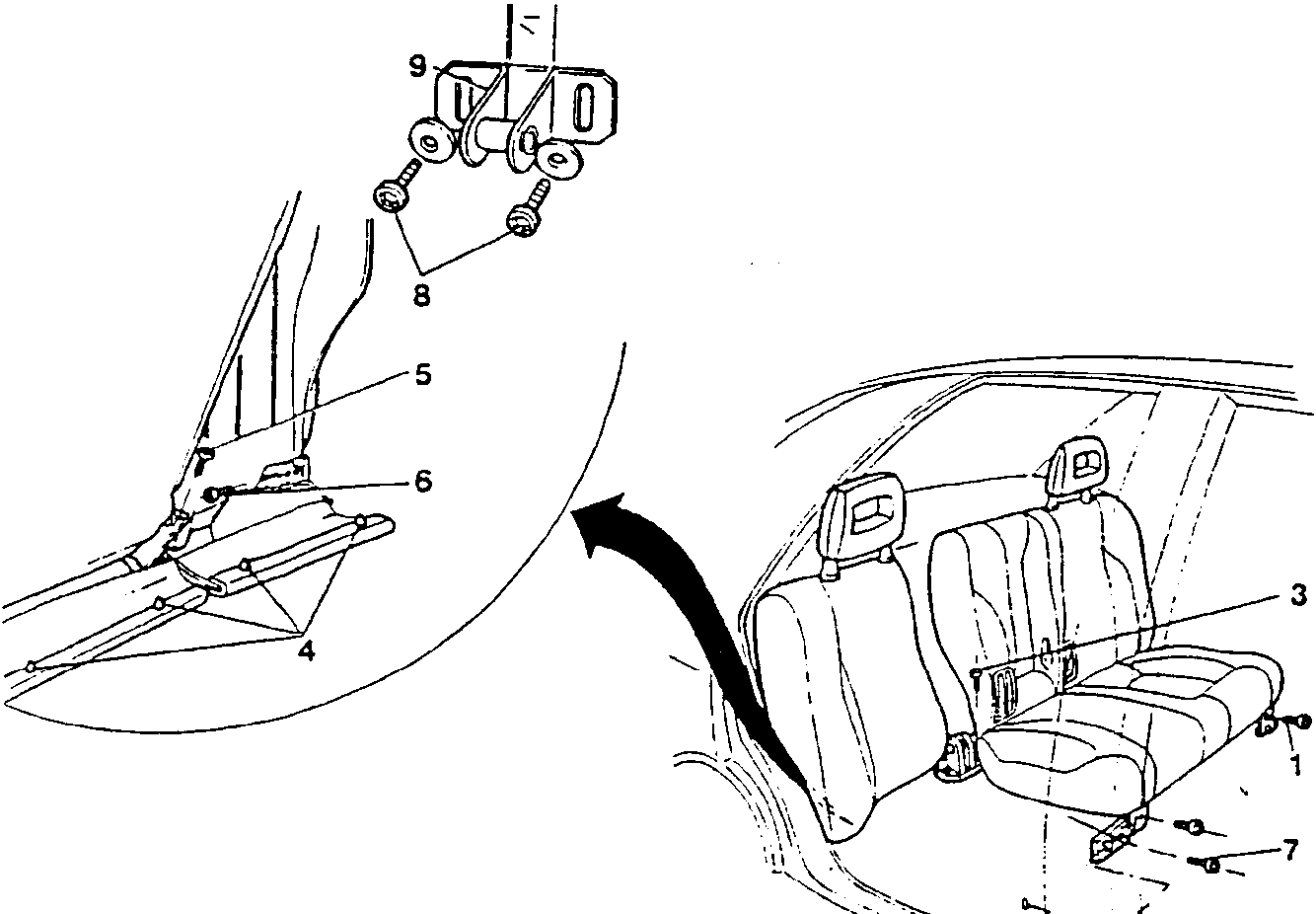

1. part name
2. part name
3. part name
4. part name
5. part name
6. part name
7. part name
8. part name
9. part name
