CHIEKS AND INSPECTIONS

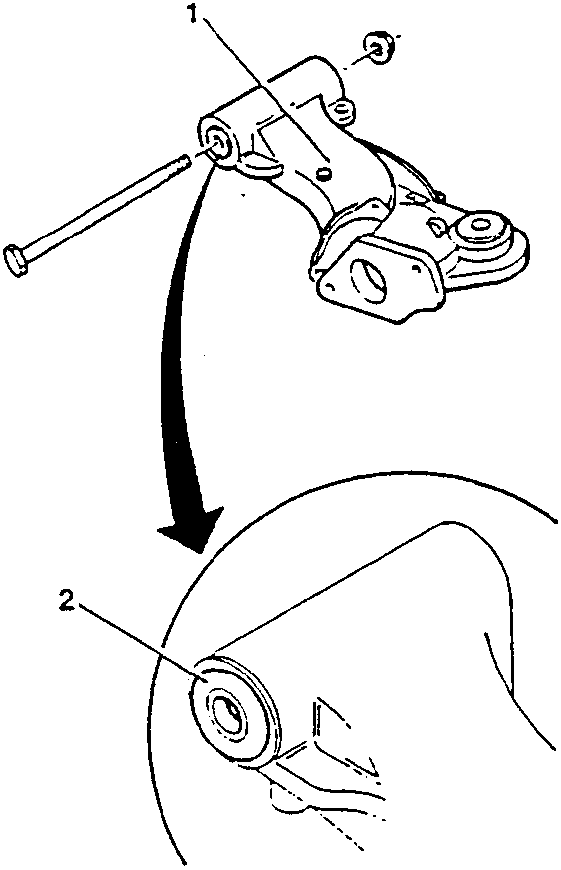

1. Visually check that the longitudinal arm is not cracked, deformed or worn on the surfaces of the wheel side.
2. Check the state of the bearings and spacer. If there is excessive noise or play replace the swinging arm.

STABILIZING BAR

REMOVAL AND REFITTING

• Remove the rear section of the exhaust pipe (see: REPAIR MANUAL - ENGINES - GR. 04).
• Remove the fuel tank (see: REPAIR MANUAL - ENGINES - GR. 04).

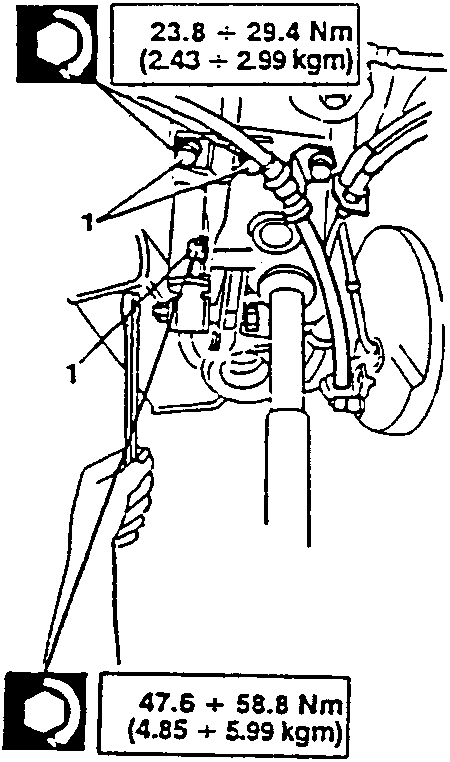

1. Loosen the three screws securing the stabilizing bar to the longitudinal arm on both sides.

23.8 ÷ 29.4 Nm
2.43 ÷ 2.99 kgm

47.6 ÷ 58.8 Nm
4.85 ÷ 5.99 kgm

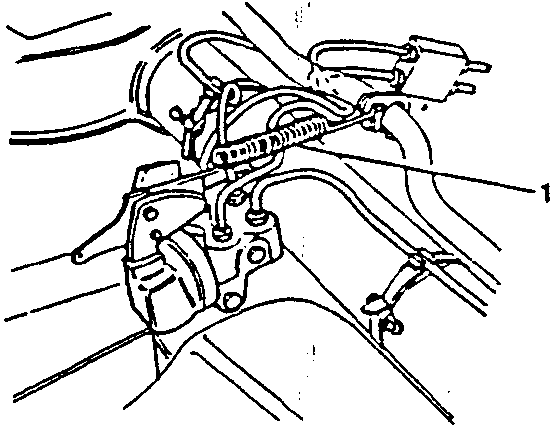

1. Disconnect the the spring operating the braking regulator from the stabilizing bar and remove the bar.
