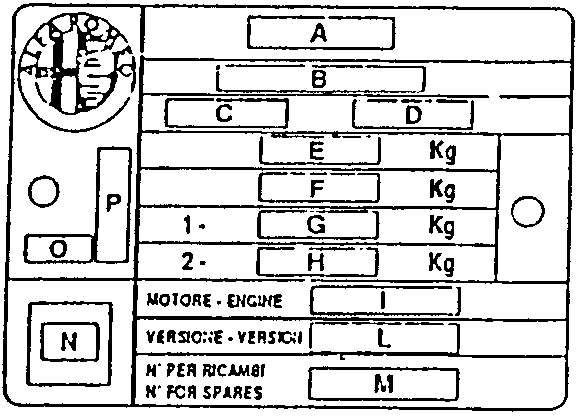

Body paint identification label

This is located on the crossmember in the engine compartment.

It carries the identification details listed to the right:

• A. Manufacturer’s trade name
• B. Homologation number
• C. Vehicle type code number
• D. Progressive body number
• E. Maximum permitted weight for fully loaded vehicle
• F. Maximum permitted weight for fully loaded vehicle and trailer
• G. Maximum permitted loading on first axle (front)
• H. Maximum permitted loading on second axle (rear)
• I. Engine type
• L. Bodywork type code
• M. Number for spare parts
• N. Correct smoke coefficient (for diesel and Turbodiesel engines)
• O. Supplier code
• P. Foreign country of production

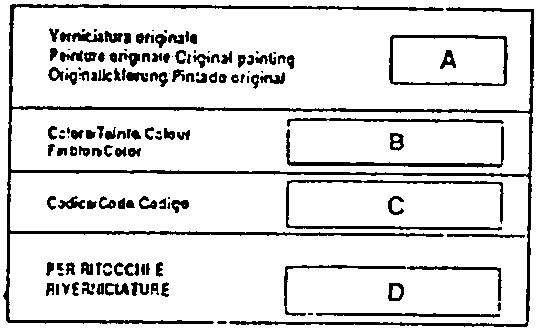

BODY PAINT IDENTIFICATION LABEL

This is located on the inside of the luggage compartment and carries the following data:

• A. Paint manufacturer
• B. Name of colour
• C. Colour code
• D. Colour code for touching up and respraying
