Lifting and towing points

The specific tools play an important role in vehicle maintenance as they are essential to guarantee an accurate service which is reliable and rapid.

The times taken to carry out the various operations have been calculated considering the use of these tools.

This manual contains the list and illustrations regarding the specific tools which have been purposely developed by the manufacturer for the overhaul, maintenance and repair of the vehicle.

The tool identification number is formed by a new number of 10 digits and an old number of 1 letter and 5 digits:

E.g.: 1.820.088.000

(A.2.0461)

Tools of recent development only have the new number.

The assistance network is able to supply particular specific tools in accordance with the procedure already being carried out at Alfa Romeo.

LIFTING AND TOWING POINTS

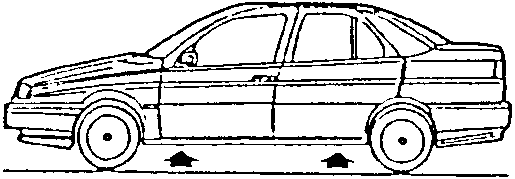

• If the vehicle needs to be lifted place the jack in the points illustrated.

CAUTION: After raising the vehicle with the jack it should be additionally supported with safety stands. Before raising the rear end (front end) of the vehicle, lock the wheels by placing wedges in front of (behind) the front (rear) wheels.

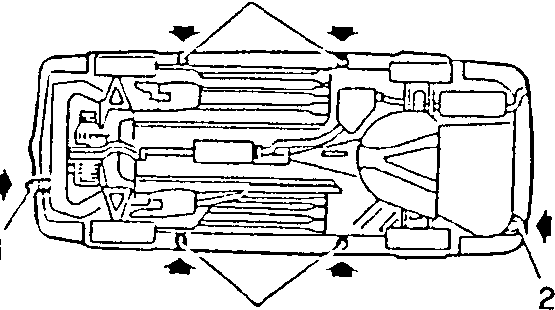

1. Front tow hook
2. Rear tow hook

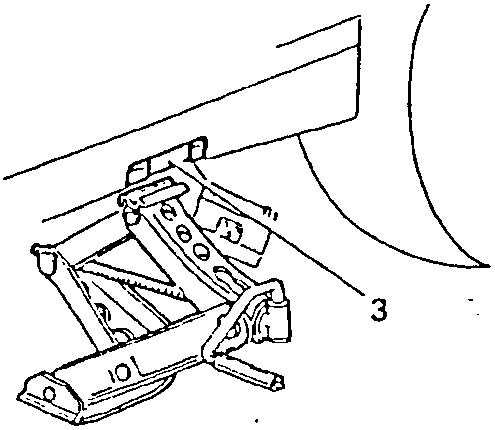

3. Seating for jack
