Substitution (page 2 of 3)

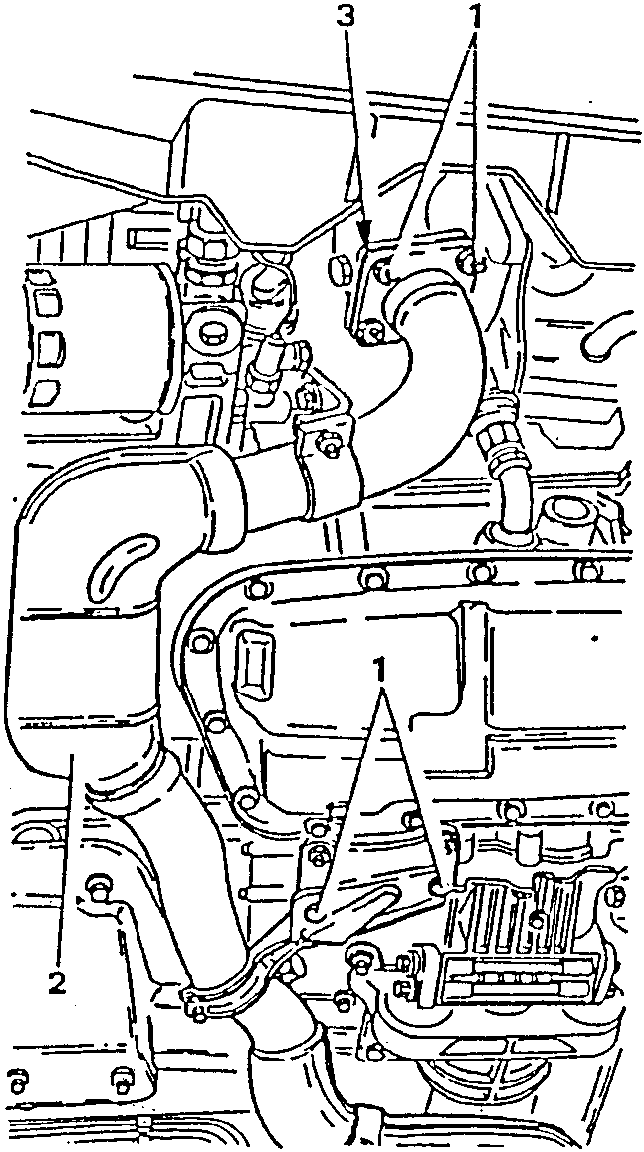

1. Loosen the screws and the nuts securing the front section of the exhaust pipe to the turbocharger and to the support brackets.
2. Remove the front section of the exhaust pipe.
3. Remove the gasket.

1. Flexible support
2. Drive shaft safety bracket
3. Support bracket

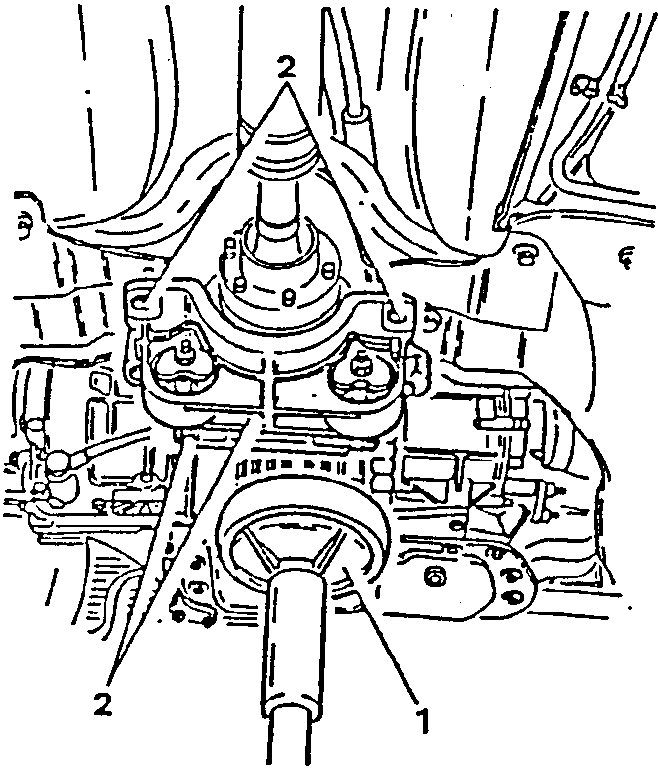

1. Position a suitable column lift under the central section of the differential.
2. Loosen the screws and the bolts securing the rear support of the engine unit and remove it.

– Slowly remove the column lift.

1. Remove the flexible support supporting the exhaust pipe.
2. Remove the drive shaft safety bracket.
