Substitution (page 3 of 3)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Power steering pump drive belt
Vehicle characteristics and maintenanceSubstitution · page 3 of 3

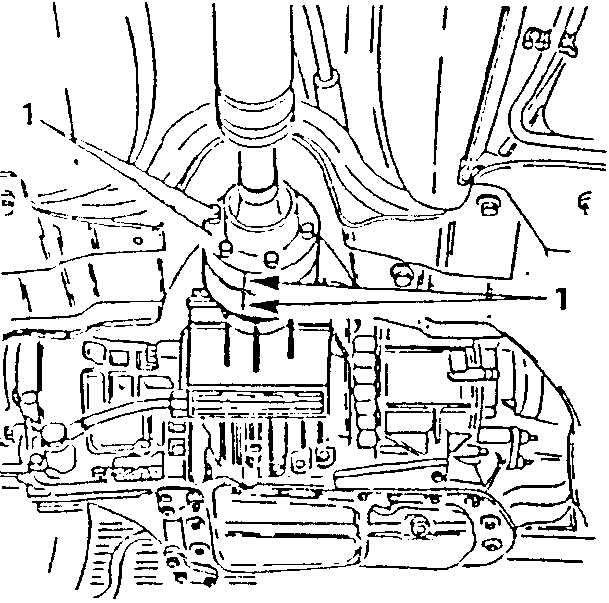

- Make reference notches on the flanges of the coupling between the front section of the drive shaft and the central differential and separate them by unscrewing the relative screws.

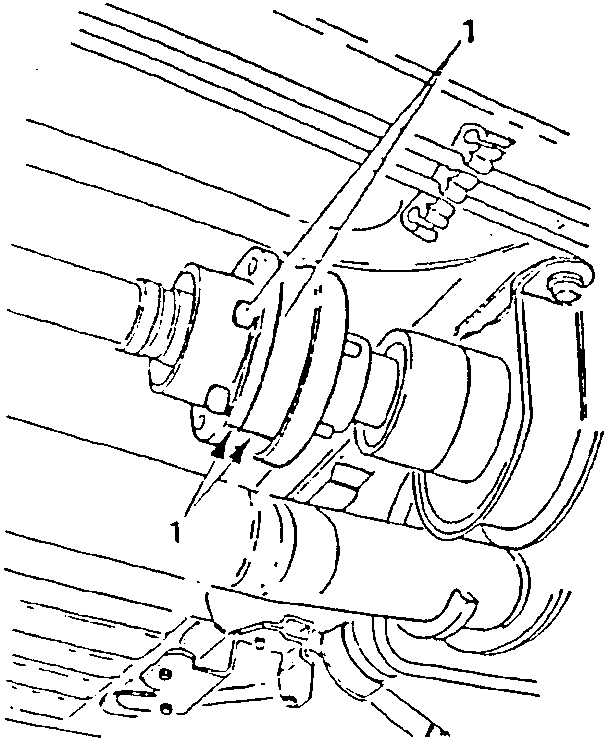

- Make reference notches on the flanges of the coupling between the front and rear sections of the drive shaft and separate them by unscrewing the relative screws.

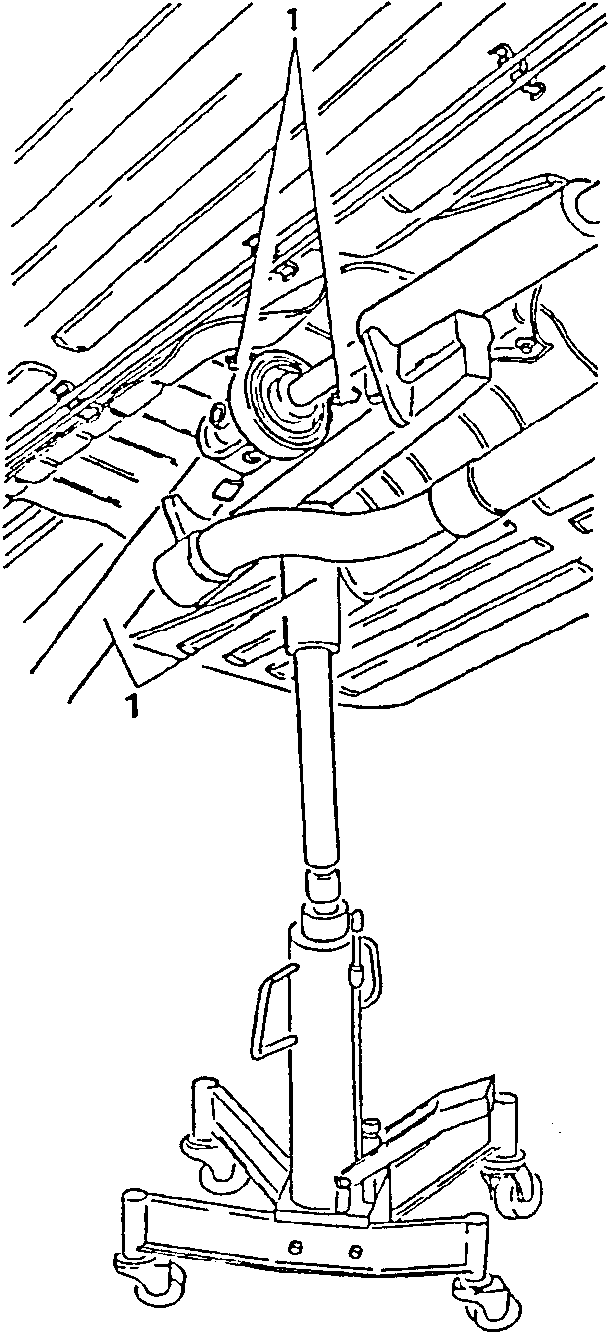

- Support the front and central sections of the drive shaft using an appropriate tool and after unscrewing the screws securing the central flexible support remove them.
