Vehicle characteristics and maintenanceReplacing timing belt · page 2 of 3

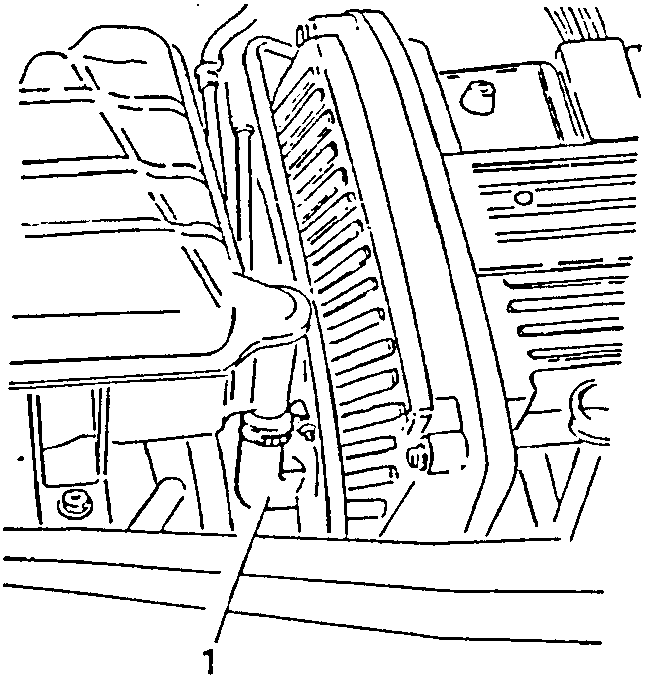

- Disconnect the engine coolant delivery hose from the expansion tank.

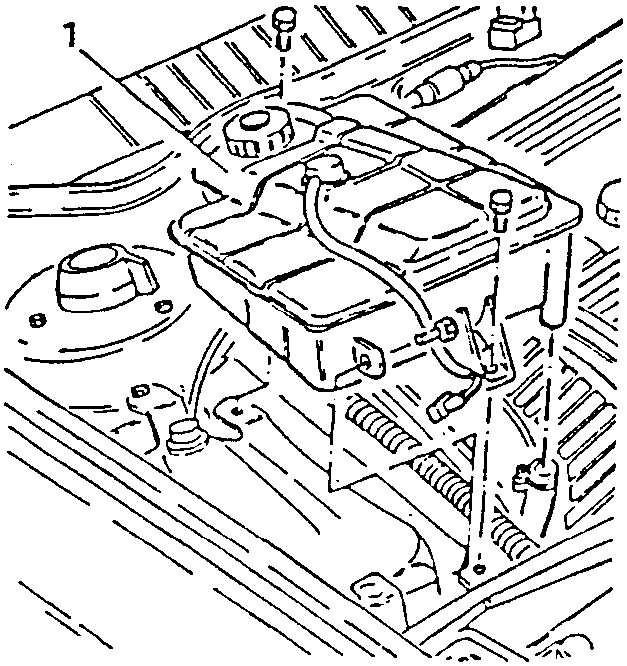

- Loosen the retaining screws and remove the expansion tank.

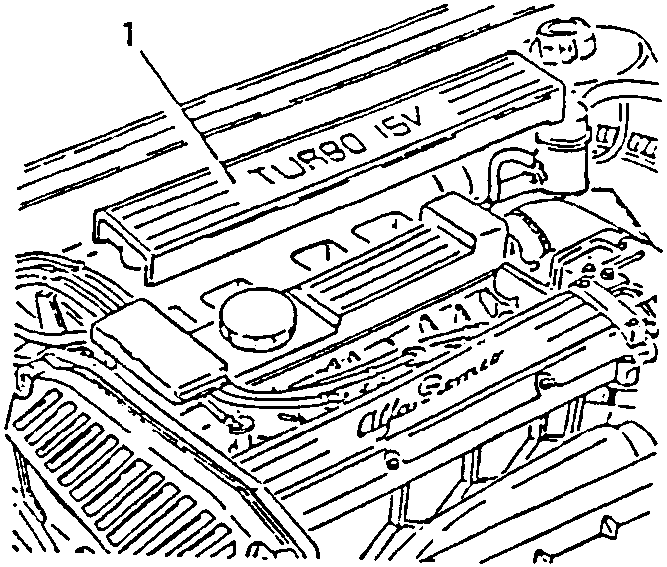

- Remove the spark plug cover.
- Remove the front right-hand wheel.

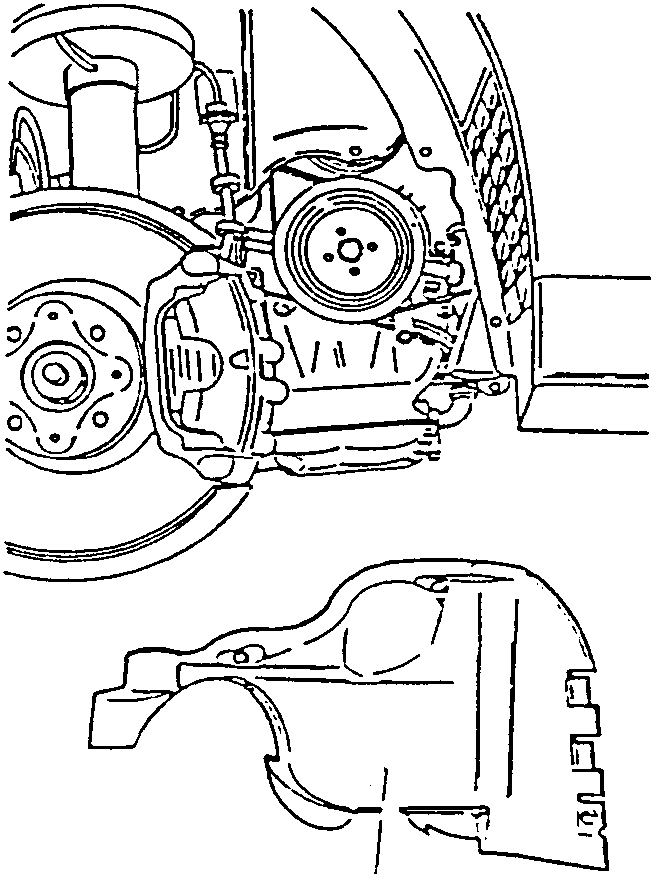

- Remove the dustguard from the right-hand wheel housing.
