Replacing timing belt (page 3 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Replacing timing belt

Vehicle characteristics and maintenanceReplacing timing belt · page 3 of 3

• Check that the piston of cylinder n° 4 is at T.D.C. during firing by operating as follows:

1. Check that the reference notches on the timing pulley coincide with the reference marks on the timing cover.

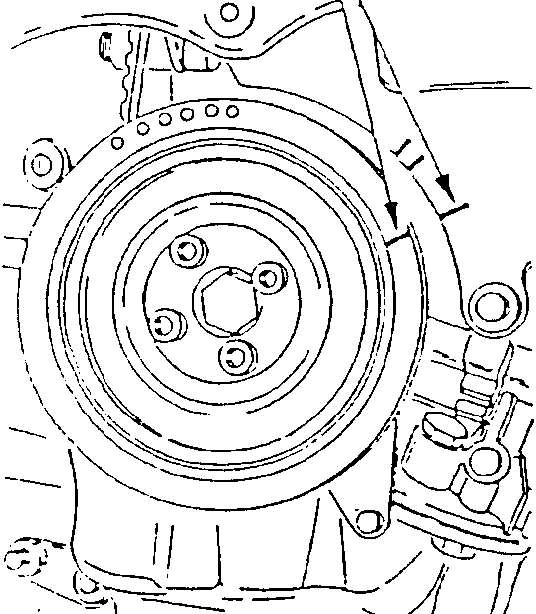

2. Check that the notch on the crankshaft pulley coincides with that engraved on the timing cover.

1. Reference mark on timing cover
2. Notch on crankshaft pulley

• Raise the vehicle on the lift.

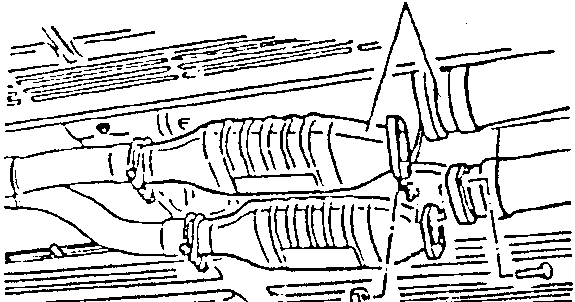

1. Disconnect the two flanges of the front section of the exhaust pipe from the two catalytic converters.

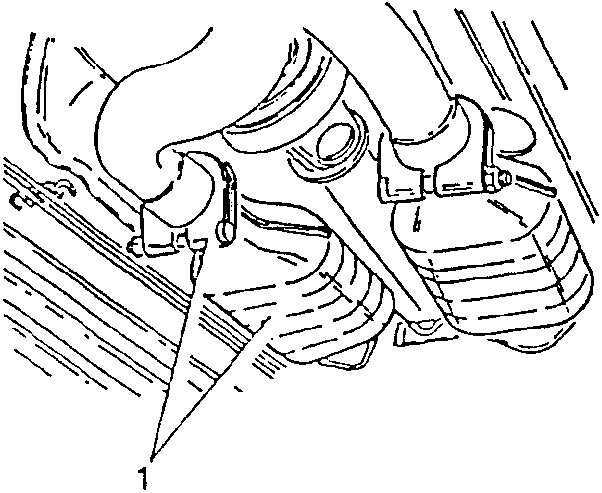

1. Loosen the collars and remove the two catalytic converters.

02 Maintenance
