Lifting and towing points (page 2 of 2)

When necessary the vehicle must be towed so that all four wheels touch the ground. Whenever this is not possible the vehicle must be transported by raising it completely off the ground (transport on another vehicle).

CAUTION:
Do not tow the vehicle with only two wheels on the ground as this may damage the transmission.

The vehicle is fitted with two tow hooks (front and rear) located on the right-hand side of the bumpers. When towing or being towed drive with care, observing the laws in force.

Before towing ensure that the ignition switch of the vehicle being towed has been turned to the MAR position and then returned to the STOP position without withdrawing the key; in this way the steering will not lock while the vehicle is in motion.

When being towed no vacuum is created in the servo brake system and it is therefore necessary, when braking, to apply a greater force than normal on the brake pedal.

The power steering system will also not be activated and it will therefore be necessary to exert a greater force on the steering wheel.

CAUTION:
Do not remove the key from the Ignition. If the key is however removed, check that the steering lock is not engaged.

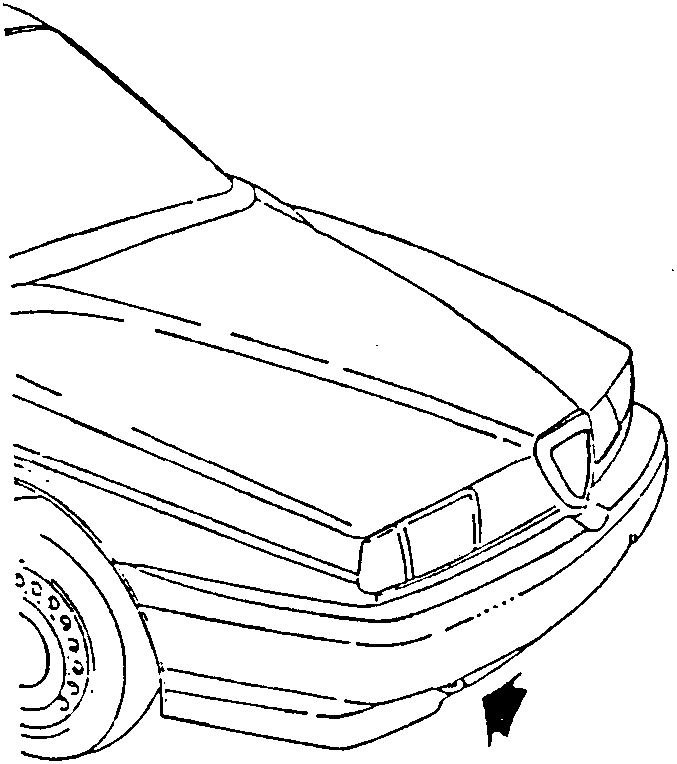

1. Front tow hook

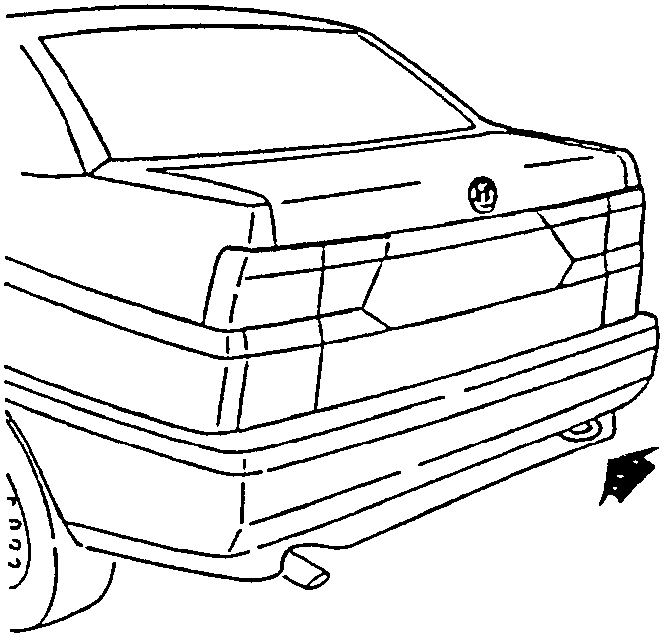

1. Rear tow hook
