Lifting and towing points

The specific tools play an important role in vehicle maintenance as they are essential in order to guarantee a complete, reliable and rapid service.

The times regarding the various operations have been calculated considering the use of the specific tools.

This manual list and illustrates the specific tools produced by the Vehicle Manufacturer for maintenance, overhaul and repair operations.

The tool identification code is formed by a new number of 10 digits and an old code of 1 letter and 5 digits.

e.g.: 1.824.016.000
(C.2.0129)

Recently produced tools only have the new number.

The assistance network can supply the specific tools in compliance with the procedures already in force at the single Alfa Romeo dealers.

LIFTING AND TOWING POINTS

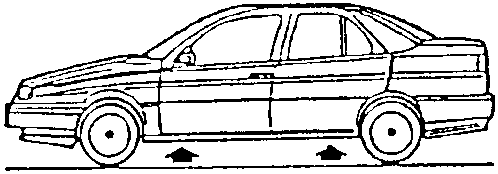

• If it is necessary to raise the vehicle, place the jacks in the places indicated in the illustration.

CAUTION: After raising the vehicle using the jack, support it with safety stands. Before raising the rear (front) end of the vehicle, block the wheels by placing chocks In front of (behind) the front (rear) wheels.

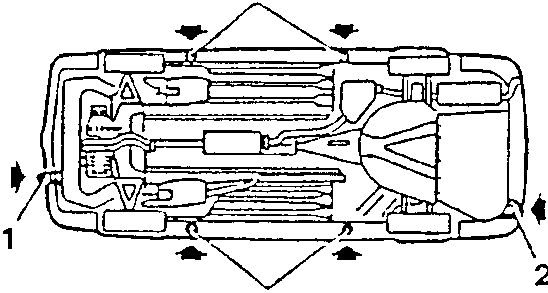

1. Front tow hook
2. Rear tow hook

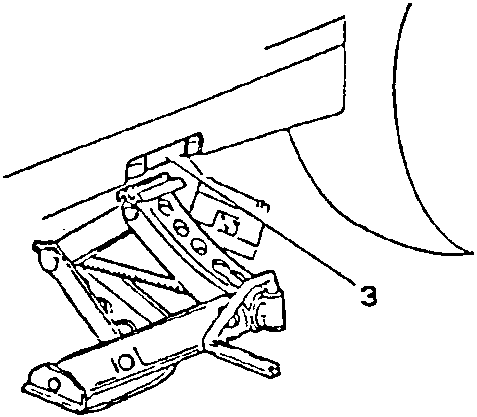

3. Lifting points
