FRONT EXHAUST SILENCER - R + R

Operation 1076B30 · EXHAUST PIPES AND SILENCERS

1.9 JTS, 2.2 JTS

Removing

- Position the vehicle on a lift.

Op. 1076B22 REAR EXHAUST SILENCERS (ONE) LH OR RH R R

1. Loosen the collar securing the front exhaust silencer to the intermediate exhaust pipe.

2. Undo the nuts fixing the front exhaust silencer front flexible mountings to the mounting bracket.

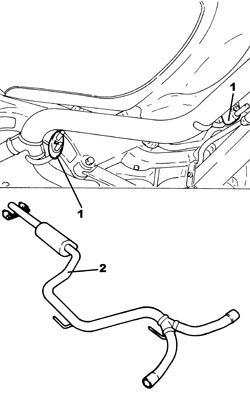

1. Support the front exhaust silencer appropriately and release it from the flexible mountings.

2. Remove the front exhaust silencer.

Refitting

- Place the exhaust silencer in its housing and secure to the flexible supports.

- Tighten the nuts fixing the front exhaust silencer front flexible mountings to the mounting bracket.

- Tighten the collar securing the front exhaust silencer to the intermediate exhaust pipe.

Op. 1076B22 REAR EXHAUST SILENCERS (ONE) LH OR RH R R

- Remove the vehicle from the lift.
