FUEL SUPPLY PIPE (ONE) - R.R.

Operation 1040B30 · FUEL SUPPLY/RETURN CIRCUIT PIPE

1.9 JTS, 2.2 JTS

Removing

3.2 JTS

Removing

Op. 4450B13 REAR WHEELS (TWO) - R.R

Op. 2720C10 DIFFERENCIAL UNIT - R.R.

Op. 2410A18 TRANSMISSION WITH JOINTS INCLUDED - R.R.

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

Op. 1040A10 FUEL TANK - R + R AND DECANT FUEL

Op. 1040E22 FUEL PIPE PROTECTION - R.R

Op. 1072B50 AIR CHAMBER - R.R.

1. Undo the fixing nuts and move the engine coolant reservoir to one side.

1. Disconnect the fuel supply pipe rapid connector, pressure pump rigid inlet pipe side.

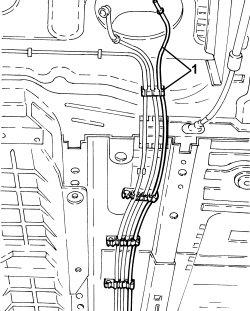

1. Release the rigid section of the fuel supply pipe (1a) from the fastening clips (1b).

- Undo the fastenings and remove the electrical connections protection.

1. Disconnect the electrical connection for the left head Lambda sensor catalyzer.

2. Disconnect the electrical connection for the right head Lambda sensor catalyzer.

3. Undo the nuts (3a) and remove the catalyzer assembly (3b).

- Remove the metal gaskets.

1. Undo the bolts and remove the front section of the exhaust from the left head precatalyzer.

- Remove the metal gasket.

1. Release the fuel supply pipe from the underbody fastenings and remove it.

Refitting

- Place the fuel supply pipe in position, secure it to the bodyshell using the clips and connect it to the pressure pump rigid inlet pipe.

- Place the front section of the exhaust and the gasket in position and connect it to the precatalyzer using the bolts.

- Place the catalyzer assembly and gaskets in position and connect it to the two front exhaust pipes using the fixing nuts.

- Connect the electrical connections for the two Lambda sensors and fit the protection.

- Place the engine coolant reservoir on its bracket and secure it using the nuts.

Op. 1072B50 AIR CHAMBER - R.R.

Op. 1040E22 FUEL PIPE PROTECTION - R.R

Op. 1040A10 FUEL TANK - R + R AND DECANT FUEL

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

Op. 2410A18 TRANSMISSION WITH JOINTS INCLUDED - R.R.

Op. 2720C10 DIFFERENCIAL UNIT - R.R.

Op. 4450B13 REAR WHEELS (TWO) - R.R
