Reversing lights - wiring diagram

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Exterior lighting › Reversing lights - wiring diagram

Wiring diagrams and electrical functionsReversing lights - wiring diagram

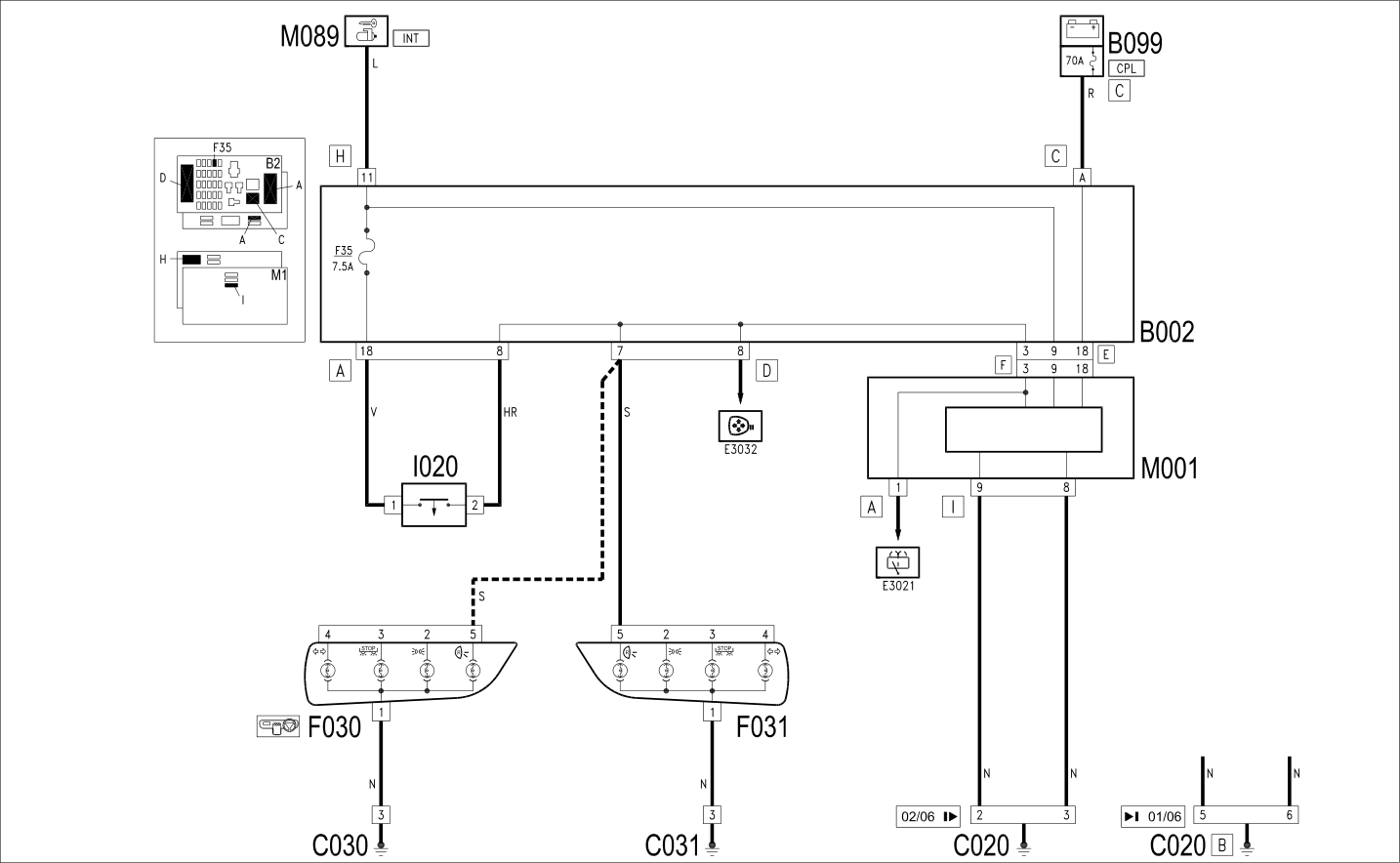

REVERSING LIGHTS - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
F030	LEFT REAR LIGHT CLUSTER	Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.
F031	RIGHT REAR LIGHT CLUSTER	Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.
I020	REVERSING LIGHTS SWITCH	Op. 5550D22 REVERSING LIGHT SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
