TUNNEL TRIM - R R

Operation 7040L20 · CABIN FLOOR COVERING

Removing

Op. 7040A65 PASSENGER COMPARTMENT BOX LOCK, ONE, R R

(right and left)

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L28 TUNNEL SWITCH PANEL - R R

1. Open the retaining button on the gear lever protective boot.

2. Remove the gear lever protective boot, after disengaging the inner retainers.

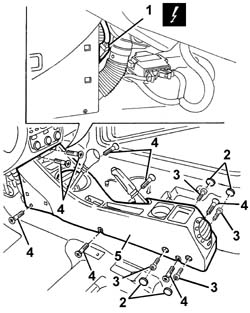

1. Disconnect the electrical connection.

2. Remove the covers.

3. Undo the bolts securing the armrest support.

4. Undo the bolts securing the tunnel trim. Use the special tool for the bolt (4a).

5. Remove the tunnel cover complete with armrest.

If necessary:

Op. 7040L35 ARM REST ON TUNNEL TRIM WITH ODMENT TRAY R R WITH TUNNEL TRIM REMOVED

Op. 5010B46 CENTRAL AIR DUCT TO REAR SEAT - ARRANGE

Op. 5010C32 AIR OUTLET ON PANEL TRIM FOR REAR SEATS - R R

Op. 7065C72 FRONT CIGAR LIGHTER SOCKET/POWER POINT - FASTEN

Op. 7065C73 CIGAR LIGHTER BULB - R R - INCLUDES R R CIGAR LIGHTER

Disconnect the tunnel cover wiring from the retainers and remove it.

Refitting

Check that the tunnel trim is not damaged.

If removed:

Fit the tunner cover wiring and secure it with the retainers.

Op. 7065C73 CIGAR LIGHTER BULB - R R - INCLUDES R R CIGAR LIGHTER

Op. 7065C72 FRONT CIGAR LIGHTER SOCKET/POWER POINT - FASTEN

Op. 5010C32 AIR OUTLET ON PANEL TRIM FOR REAR SEATS - R R

Op. 5010B46 CENTRAL AIR DUCT TO REAR SEAT - ARRANGE

Op. 7040L35 ARM REST ON TUNNEL TRIM WITH ODMENT TRAY R R WITH TUNNEL TRIM REMOVED

Refit the tunnel trim and fix it with the bolts.

Tighten the bolts securing the armrest mounting.

Fit the covers.

Connect the electrical connection.

Position the gear lever protective boot, engage the inner retainers and close the button.

Op. 7040L28 TUNNEL SWITCH PANEL - R R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040A65 PASSENGER COMPARTMENT BOX LOCK, ONE, R R

(right and left)
