CABIN WIRIRNG - R R

Operation 5505C40 · VEHICLE COMPARTMENT WIRING

1.8 T.SPARK

For precise identification of the electrical connections, see the ''Wiring Diagrams'' Section.

All versions

Removing

1. Undo the bolts.

2. Remove the mounting bracket for the air duct to the rear seats.

1. Undo the pins anchoring the rear seat.

2. Remove the sound insulation.

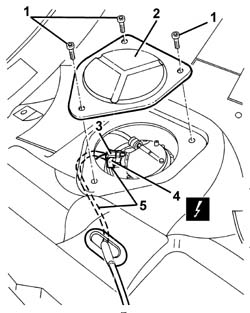

1. Undo the bolts.

2. Remove the fuel pump access cover.

3. Release the safety tab for the electrical connection.

4. Disconnect the electrical connection.

5. Release the electrical connection from the passage between the bodyshell and the fuel tank.

Move aside the carpeting and the parts necessary for removal of the integrated wiring.

1. Disconnect the electrical connections and retainers of the integrated wiring.

2. Remove the integrated wiring.

Refitting

Check that the integrated wiring is not damaged and that the individual conductors are firmly attached to the connections.

Check that the connections are fitted with the anti-slip devices (secondary lock).

If necessary, check the continuity.

Position the integrated wiring.

Connect the electrical connections.

Secure the integrated wiring using the retainers.

Refit and secure the carpeting and the parts moved or removed to remove the integrated wiring.

Fit the electrical connection in the passage between the bodyshell and the fuel tank.

Connect the electrical connection and attach the safety tab.

Position the fuel pump access cover and secure it using the bolts.

Position the sound insulation and tighten the rear seat anchorage pins.

Position the air duct mounting bracket and tighten the bolts.
