COLD AIR INTAKE - R R

Operation 1048A23 · VACUUM AIR CIRCUIT

2.0 JTS

Removing

Position the vehicle on a lift.

Proceed with the removal

Op. 4450B02 LEFT FRONT WHEEL R R.

Proceed with the removal

Op. 7055B65 ENGINGE BAY DUSTGUARD PROTECTION IN LEFT FRONT WHEEL ARCH R R.

Proceed with the removal

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R..

Proceed with the removal

Op. 7055B54 UNDER-ENGINE GUARD - R R.

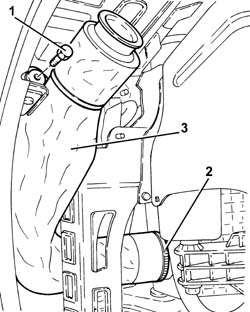

1. Undo the bolt fixing the air filter cold air intake to the bodyshell.

2. Loosen the band fixing the cold air intake to the air filter.

3. Remove the cold air intake for the air filter.

Refitting

Place the cold air intake for the air filter back in its housing and secure it using the band and the bolt.

Proceed with the refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Proceed with the refitting

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R..

Proceed with the refitting

Op. 7055B65 ENGINGE BAY DUSTGUARD PROTECTION IN LEFT FRONT WHEEL ARCH R R.

Proceed with the refitting

Op. 4450B02 LEFT FRONT WHEEL R R.

Remove the vehicle from the lift.

3.2 V6

Removing

Proceed with the removal

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Proceed with the removal

Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R.

Proceed with the removal

Op. 7055B42 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R.

Proceed with the removal

Op. 7210E10 R.R. FRONT BUMPER.

1. Undo the bolt (1a) and remove the cold air intake for the air filter (1b) after having released it from the air filter.

Refitting

Place the cold air intake for the air filter back in its housing, connect it to the air filter and fasten it using the bolt.

Proceed with the refitting

Op. 7210E10 R.R. FRONT BUMPER.

Proceed with the refitting

Op. 7055B42 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R.

Proceed with the refitting

Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R.

Proceed with the refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

1.9 JTD 16V

Removing

Proceed with the removal - 1016A10 SOUND INSULATION COVER - R.R.

1. Undo the bolt fixing the cold air intake to the crossmember.

1. Loosen the band (1a) and remove the cold air intake (1b).

Refitting

Place the cold airintake back in its housing and tighten the band.

Tighten the bolt fixing the cold air intake to the crossmember.

Proceed with the refitting - 1016A10 SOUND INSULATION COVER - R.R.

1.8 T.SPARK

Removing

• Position the vehicle on a lift.
• Op. 4450B02 LEFT FRONT WHEEL R R
• Op. 7055B65 ENGINGE BAY DUSTGUARD PROTECTION IN LEFT FRONT WHEEL ARCH R R
• Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

• Undo the bolt fixing the air filter cold air intake to the bodyshell.
• Loosen the band fixing the cold air intake to the air filter.
• Remove the cold air intake for the air filter.

Refitting

• Place the cold air intake for the air filter back in its housing and secure it using the band and the bolt.
• Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.
• Op. 7055B65 ENGINGE BAY DUSTGUARD PROTECTION IN LEFT FRONT WHEEL ARCH R R
• Op. 4450B02 LEFT FRONT WHEEL R R
• Remove the vehicle from the lift.
