Tightening torques › Assembly 18 - Clutch

00 Technical data and maintenanceAssembly 18 - Clutch

(CONTINUED)

Part	Nm	kgm
Crankshaft front pulley fastening nut (in oil)	235	24
Engine front cover fastening screws	8 ÷ 9	0.8 ÷ 0.9
Flywheel fastening screws (in oil)	138 ÷ 144	14.1 ÷ 14.7
Main bearing fastening nuts (in oil)	84 ÷ 93	8.6 ÷ 9.5
Rear main bearing fastening nuts	25 + 79°	2.5 + 79°
Oil pump return pulley fastening nut	18 ÷ 22	1.8 ÷ 2.3
Camshaft bearing fastening nuts (in oil)	16 ÷ 18	1.6 ÷ 1.8
Tappet clearance adjustment screw lock nuts, exhaust side	15 ÷ 18	1.5 ÷ 1.8
Engine oil minimum pressure warning light sensor	20 ÷ 25	2.1 ÷ 2.6
Starter motor fastening screws	38 ÷ 45	3.9 ÷ 4.6
Oil sump drain cap	64 ÷ 79	6.5 ÷ 8.0
Spark plugs (in oil)	25 ÷ 34	2.5 ÷ 3.5
Filter fuel outlet fitting	21 ÷ 26	2.1 ÷ 2.7
Filter fuel inlet fitting	30 ÷ 37	3.1 ÷ 3.8
Throttle potentiometer fastening screws	1.7 ÷ 1.9	0.17 ÷ 0.19
Lambda sensor	50 ÷ 60	5.1 ÷ 6.1
Thermostat assembly cover fastening screws	14 ÷ 17	1.4 ÷ 1.7
Engine coolant temperature gauge sensor and maximum temperature warning light contact	20 ÷ 25	2.1 ÷ 2.6
Engine coolant temperature sensor (NTC)	12 ÷ 15	1.2 ÷ 1.5

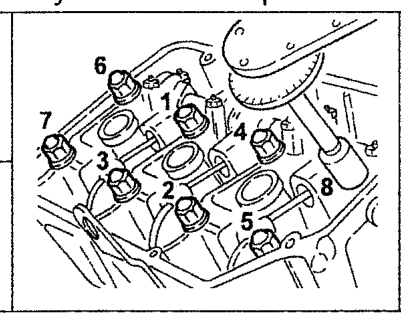

Cylinder head torque
Fasten all screws at:	25	2.5
Turn all screws at a angle of:	230° ± 2°

Assembly 18 - Clutch

Part	Nm	kgm
Thrust plate-flywheel fastening screws	20 ÷ 25	2.1 ÷ 2.6
Gearbox bell clutch cylinder bracket fastening screws (2959 cc)	12 ÷ 15	1.2 ÷ 1.5
Gearbox bell clutch cylinder fastening screws	13 ÷ 16	1.3 ÷ 1.6
Clutch pump - pedal board fastening nuts	13 ÷ 21	1.3 ÷ 2.1
Clutch circuit pipe fitting on pump	17 ÷ 19	1.7 ÷ 1.9
Clutch circuit pipe fitting on control cylinder	17 ÷ 19	1.7 ÷ 1.9
Thrust bearing sleeve fastening screws	7 ÷ 9	0.7 ÷ 0.9
