Dimensions

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Vehicle › Dimensions

00 Technical data and maintenanceDimensions

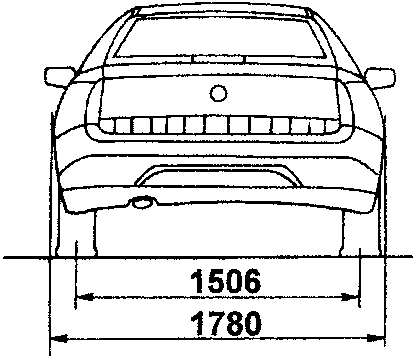

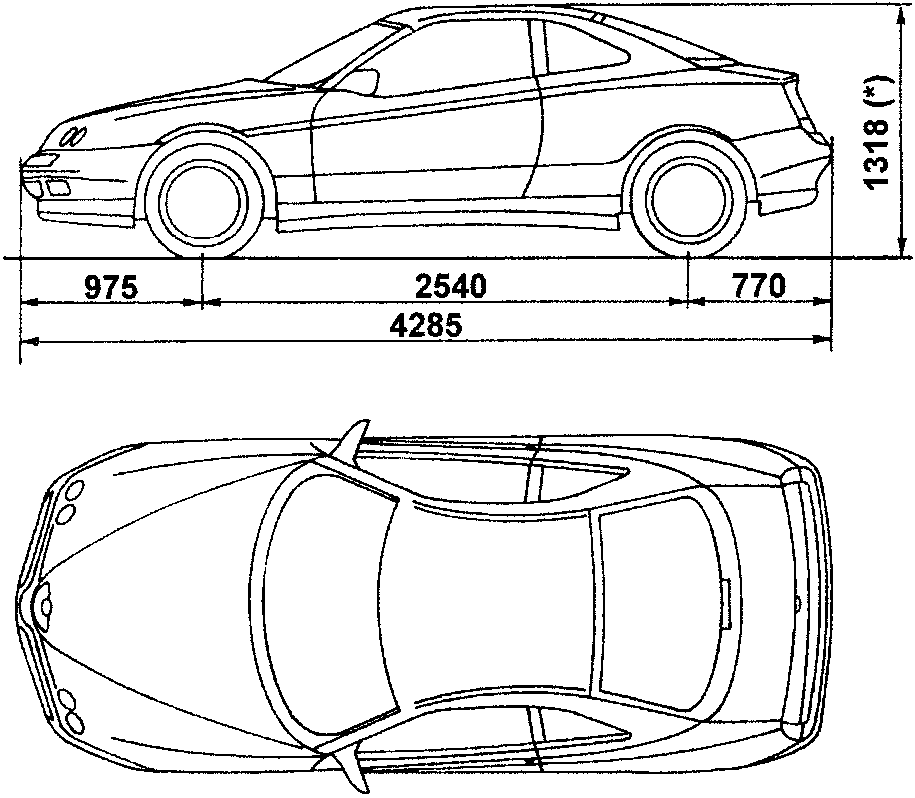

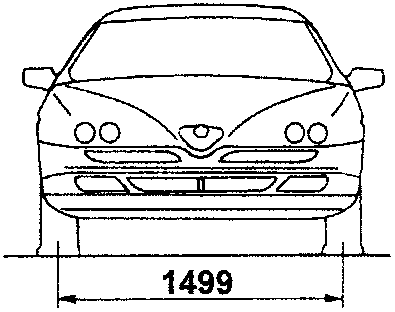

DIMENSIONS

Gtv versions

(*) : Unladen vehicle

WEIGHTS AND LOADS

Unit: kg

Features / Versions		916S3	916S2	916C3	916C2	916S1
Kerb weight (without driver)		1350	1370	1350	1370	1420
Maximum admitted load		1610	1630	1760	1780	1680
Load		260	260	410	410	260
Maximum weight allowed on each axle	front	974	974	974	974	1000
	rear	800	800	870	870	800
Towable weight	trailer with brakes	1000	1000	1000	1000	1000
	trailer without brakes	500	500	500	500	500
Maximum load on tow hitch		50	50	50	50	50
