Identification data plate

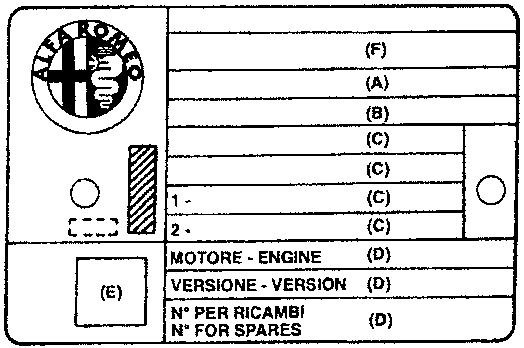

IDENTIFICATION DATA PLATE

The plate is applied in the engine compartment on the upper left-hand shock absorber bracket. It contains the following data:

A. National homologation

B. Chassis number punch mark

C. Maximum authorised weights prescribed by national laws, where relevant

D. Version identification (e.g. 916S2) Version identification

E. Smokiness

F. Manufacturer's name punch mark

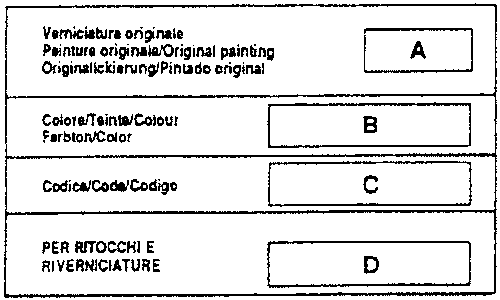

PAINTWORK IDENTIFICATION PLATE

This plate is applied on the inside of the boot and contains the following data:

A. Paint manufacturer

B. Colour name

C. Colour code

D. Touch-up and re-spray code

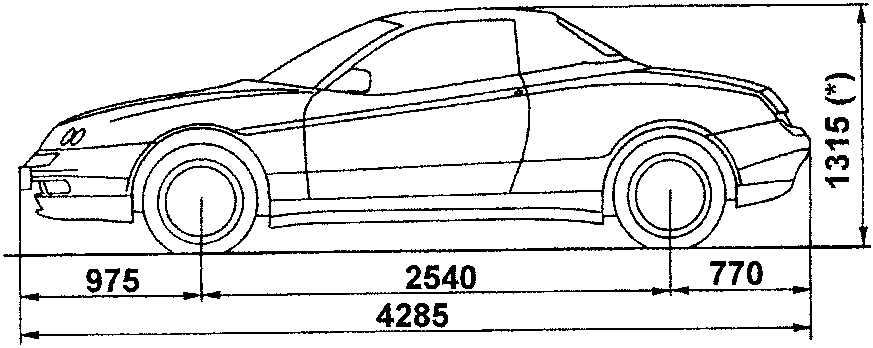

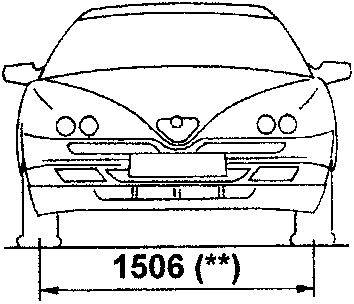

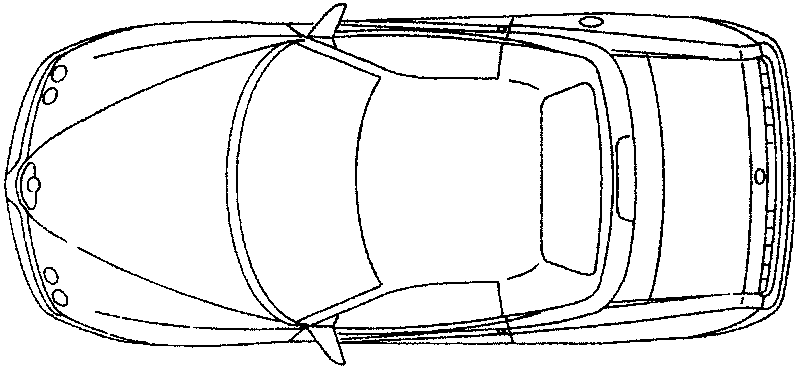

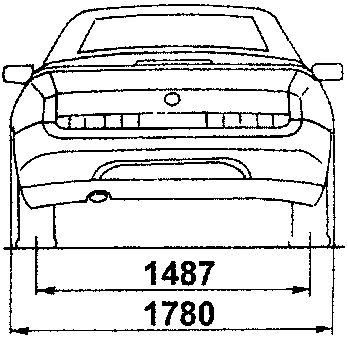

DIMENSIONS

Spider versions

(*): Unladen vehicle (**): With alloy rims
