OIL SUMP

REMOVAL/REFITTING

  • Set the car on a lift.
  • Disconnect the battery (-) cable.
  • Raise the car and drain the engine oil (see GROUP 00).
  • Remove the front section of the exhaust pipe.

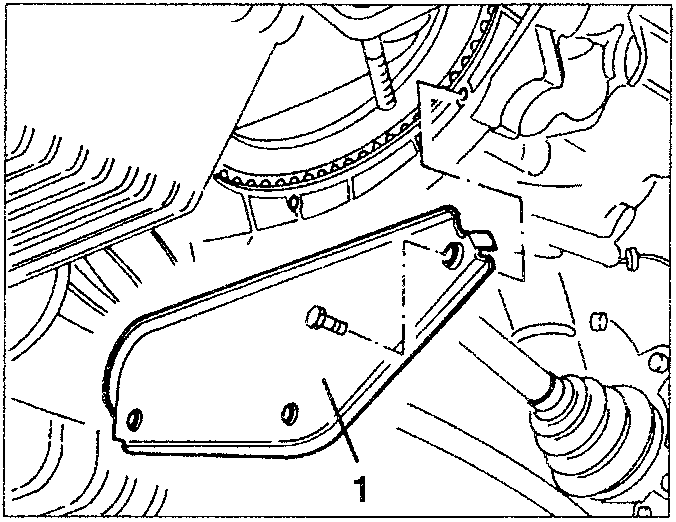

  1. Slacken the fastening screws and remove the flywheel cover.
Illustrates removal of transmission crossmember bracket
Engine with flywheel cover and oil sump

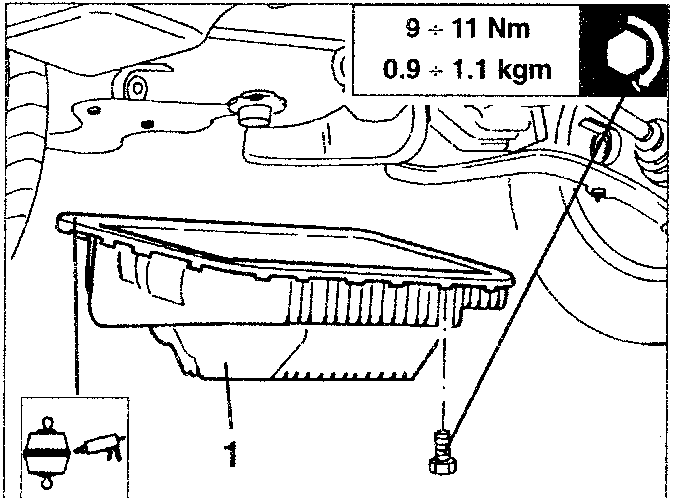

  1. Slacken the fastening screws and remove the oil sump.

9 ÷ 11 Nm
0.9 ÷ 1.1 kgm

Oil sump being removed with torque wrench

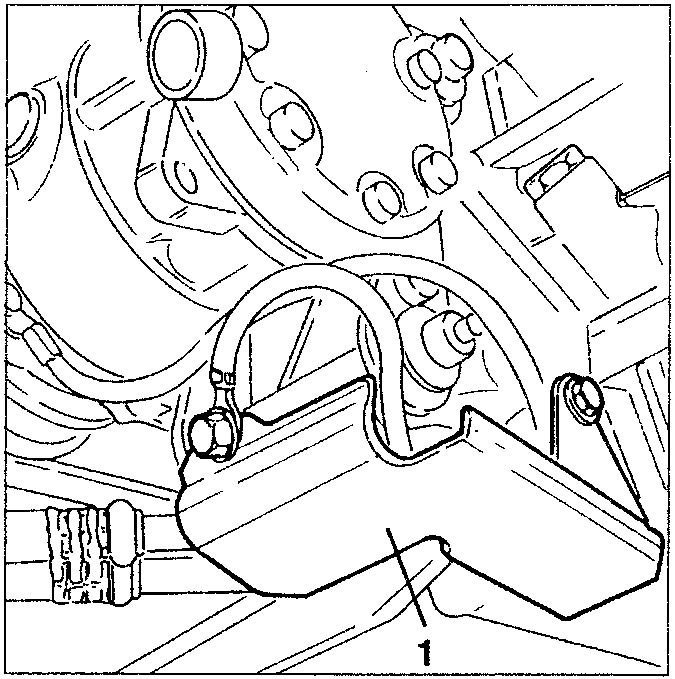

  1. Remove the engine oil delivery and return pipes support bracket.
Engine with oil delivery and return pipes support bracket

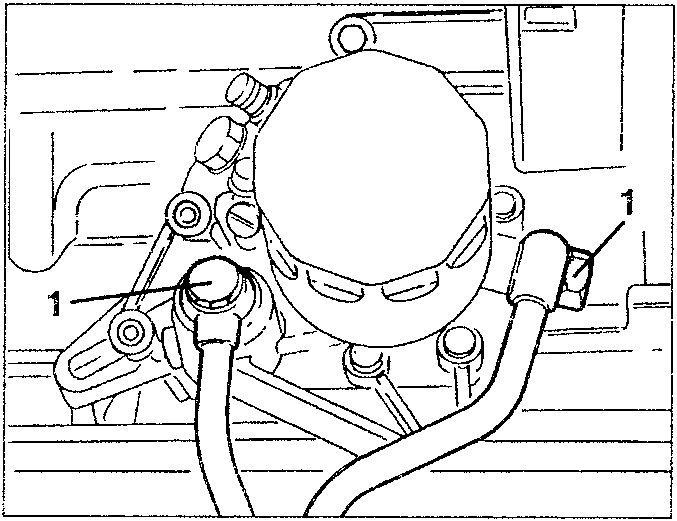

  1. Disconnect the two oil delivery and return connections from the oil filter support, then leaving them connected to the radiator, fasten them at the side so that they do not hinder the removal of the oil sump.
