CYLINDER HEADS

REMOVAL/REFITTING RIGHT HAND CYLINDER HEAD

  • Set the car on a lift.
  • Disconnect the battery (-) terminal.
  • Remove the right front wheel and mud flaps.

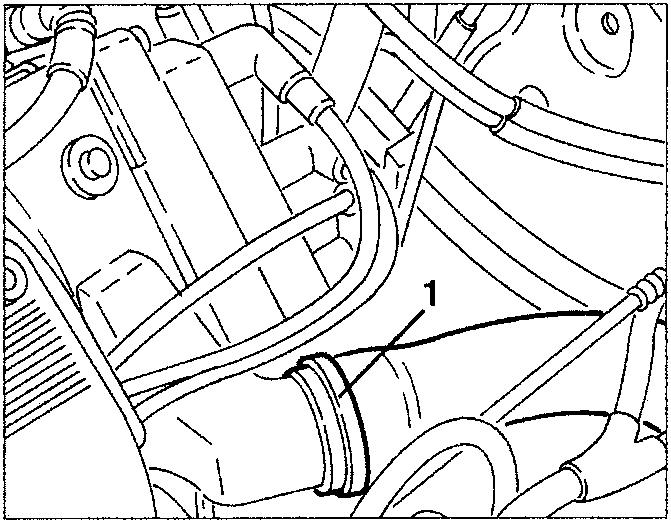

  1. Raise the car and drain the coolant fluid disconnecting the radiator outlet sleeve.
Coolant delivery sleeve disconnected from ignition coils support
  • Using a suitable syringe, empty the power steering fluid tank.

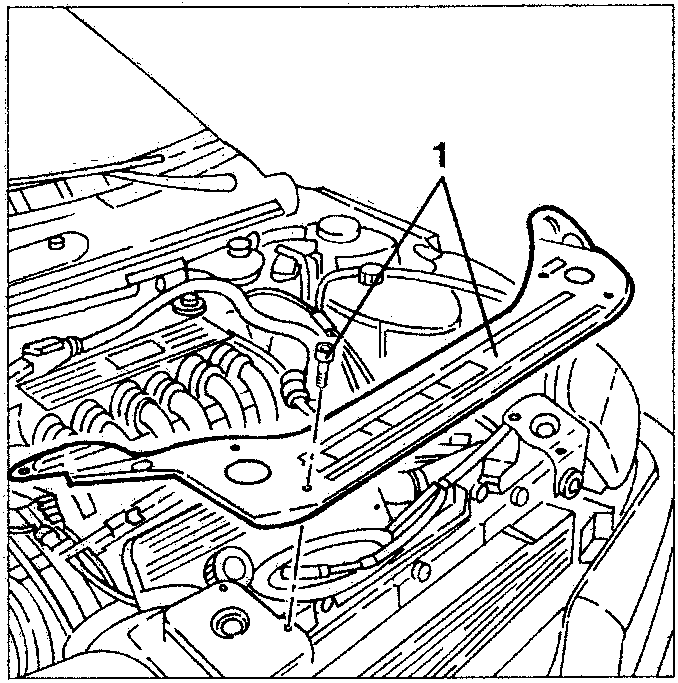

  1. Slacken the fastening screws and remove the radiator upper crossmember.
Electrical connections from cooling fans and fan speed coil
  1. Disconnect the electrical connections from the cooling fans.
  2. Disconnect the electrical connections from the fan speed coil.

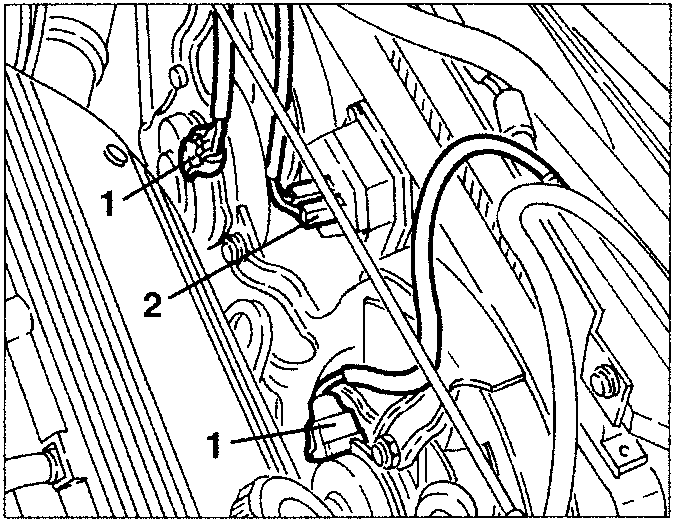

Coolant delivery sleeve disconnected from ignition coils support
  1. Disconnect the coolant delivery sleeve to the radiator from the ignition coils support.

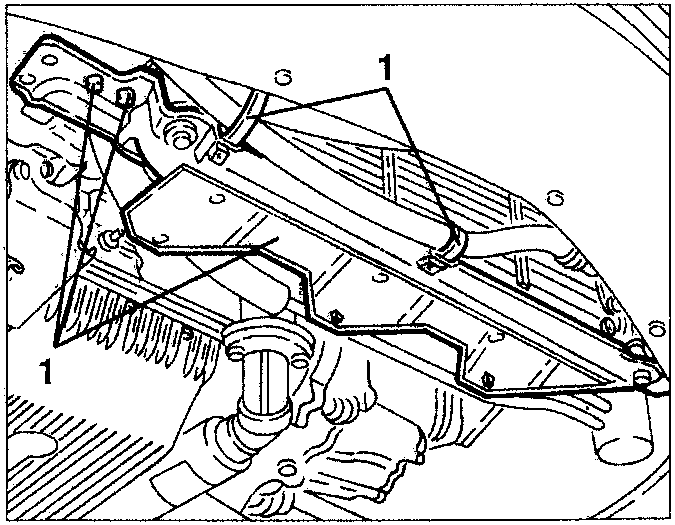

Lower radiator crossmember with clamps on engine oil pipes
  1. Slacken the four fastening screws, lower the lower radiator crossmember just enough to remove the two clamps supporting the engine oil delivery-return pipes to the radiator, then remove it after freeing it from the conditioner pipes.
Lower radiator crossmember with clamps on engine oil pipes
