10 Engine – 3.0 V6Cylinder heads · page 6 of 6

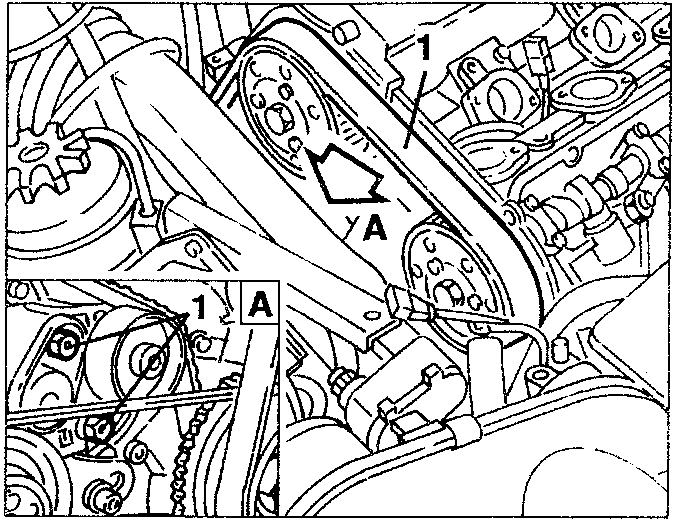

  1. Slacken the two nuts fastening the timing belt tensioner, then remove the belt.
Timing belt tensioner and belt removal

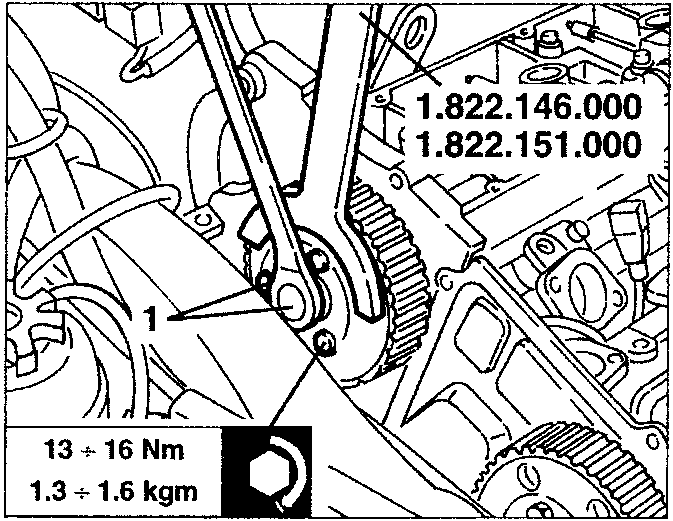

  1. Levering with tool no. 1.822.146.000 and no. 1.822.151.000, slacken the nut and the three screws fastening the right-hand timing gear drive pulley, then remove it.
Right-hand timing gear drive pulley removal

13 ÷ 16 Nm
1.3 ÷ 1.6 kgm

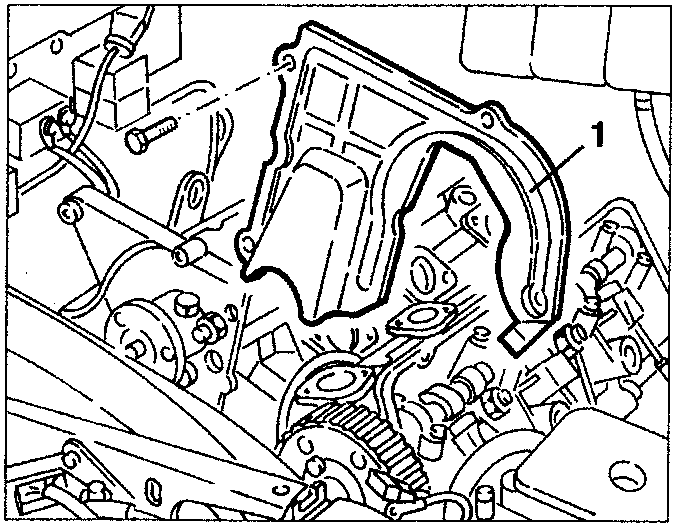

  1. Slacken the fastening screws and remove the rear timing belt cover.
Rear timing belt cover removal

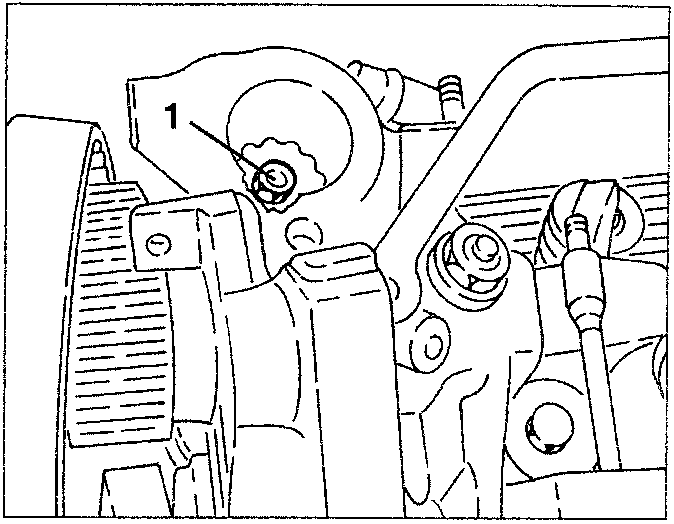

  1. Slacken the nut fastening the intermediate oil pump driving gear.
Intermediate oil pump driving gear nut

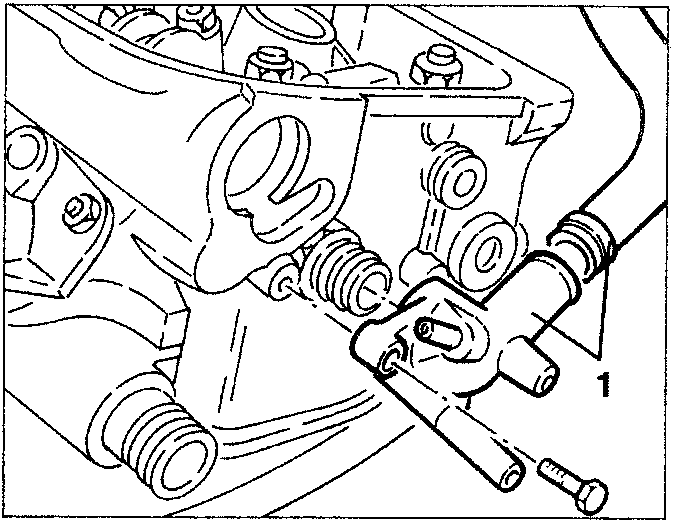

  1. Disconnect the coolant delivery pipe to the radiator from the connection on the right hand cylinder head and remove it.
Coolant delivery pipe disconnection

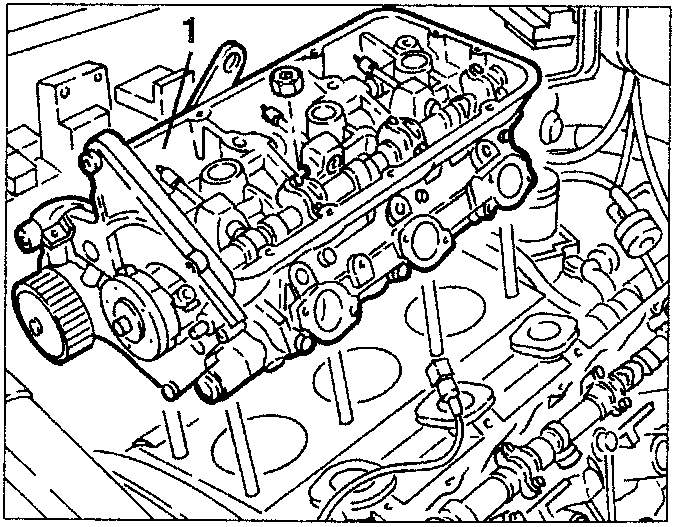

  1. Slacken the fastening nuts and remove the right hand cylinder head.
    - Remove the corresponding seal.
Right hand cylinder head removal
