Cylinder heads (page 4 of 6)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle (V6)

10 Engine – 3.0 V6Cylinder heads · page 4 of 6

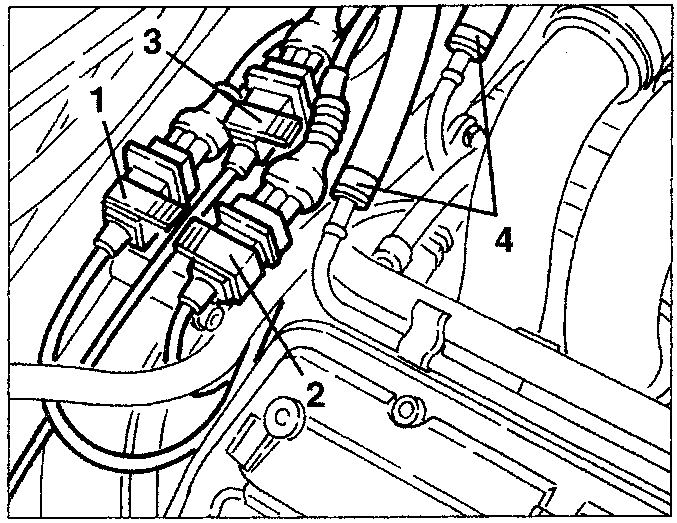

1. Disconnect the timing sensor connection.
2. Disconnect the pinging sensor connection.
3. Disconnect the rpm and timing sensor connection, then move the wiring to one side.
4. Disconnect the fuel delivery and return pipes from the distributor manifold.

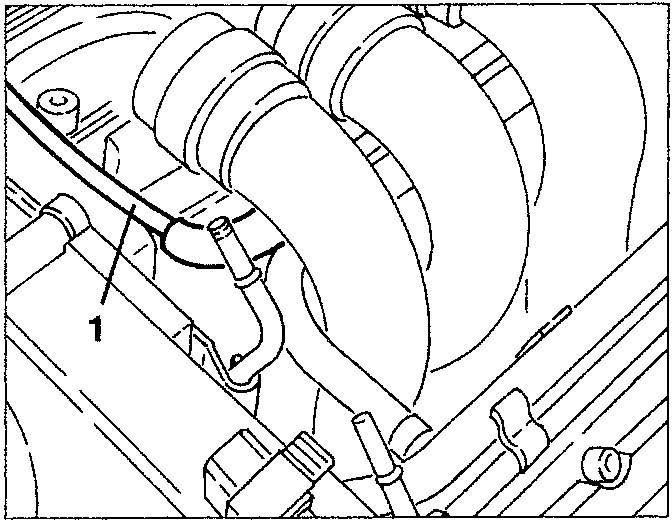

1. Disconnect the fuel vapour recirculation pipe.

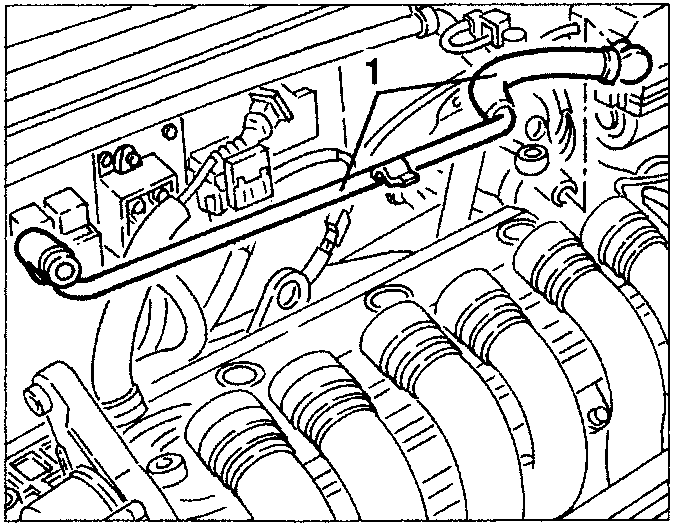

1. Disconnect and remove the servobrake vacuum takeoff pipe.

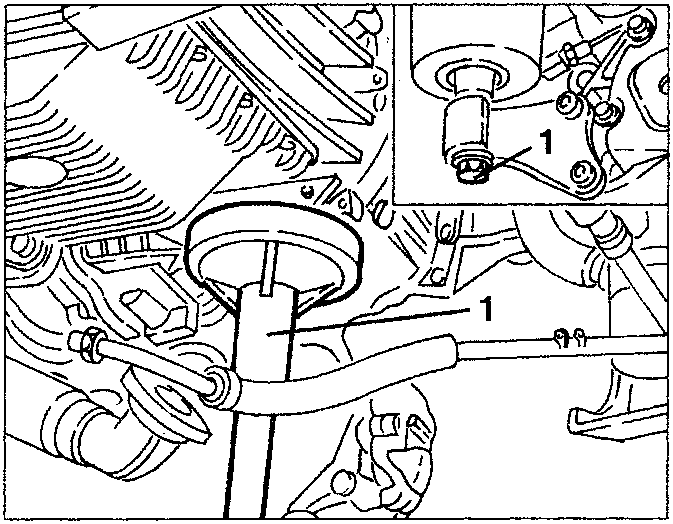

1. Set a hydraulic jack under the gearbox, then slacken the power unit support fastening screw on the gearbox side.

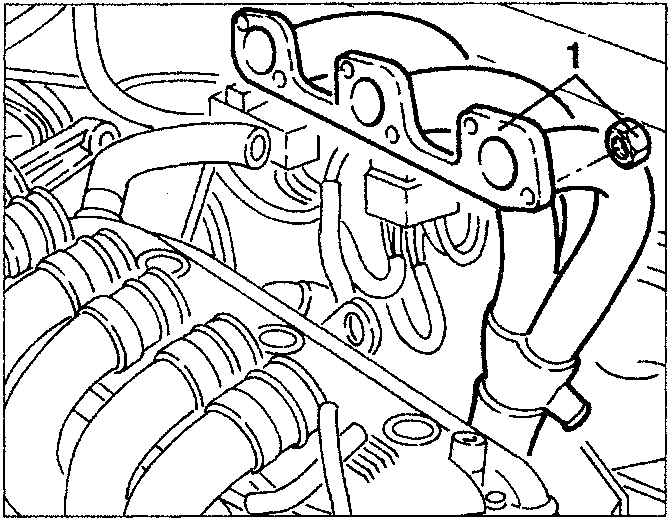

1. Lower the power unit just enough to slacken the fastening nuts and remove the right hand exhaust manifold.

• Retrieve the seals.

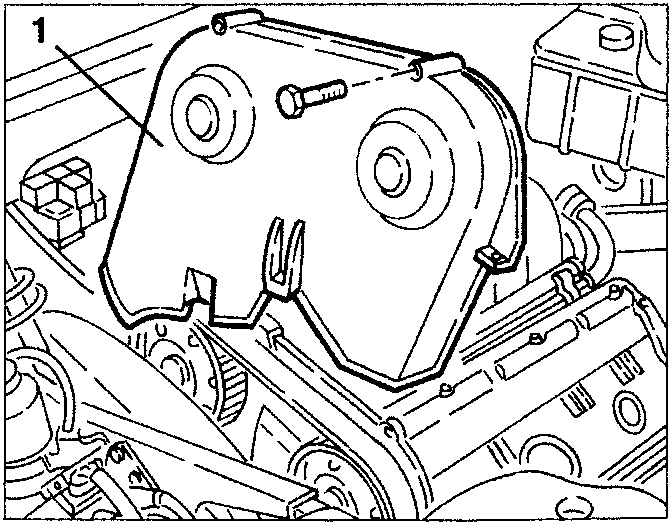

1. Slacken the fastening screws and remove the timing belt cover.
