10 Engine – 3.0 V6Cylinder heads · page 5 of 6

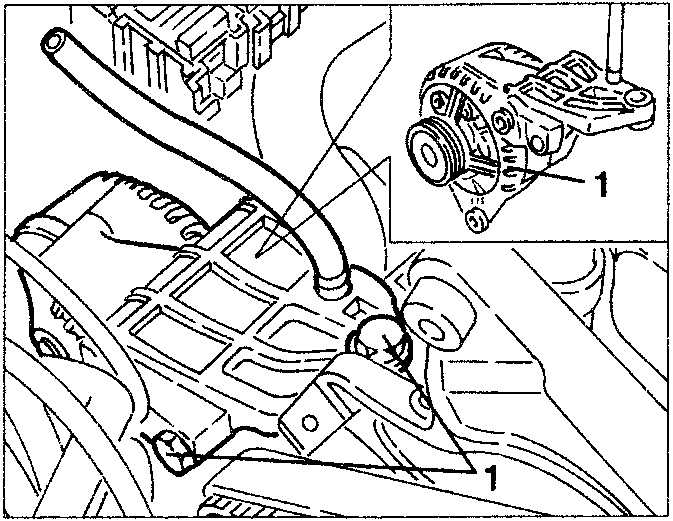

1. Slacken the screws fastening the alternator and upper support bracket, remove the drive belt and from above, remove the alternator complete with bracket.

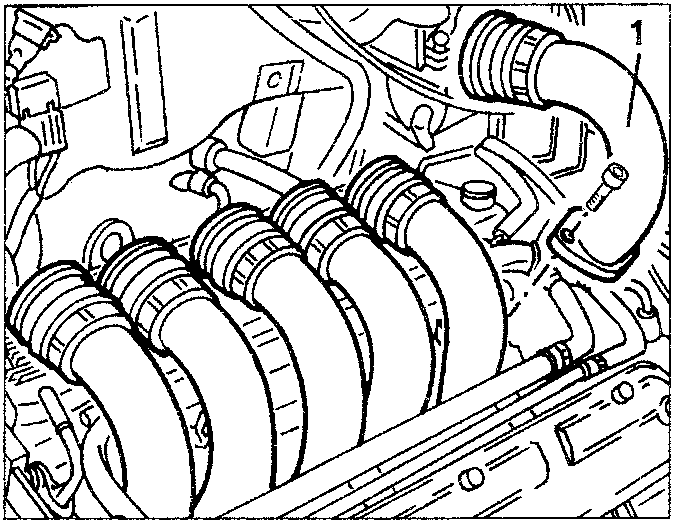

1. Slacken the fastening screws and remove the intake ducts.

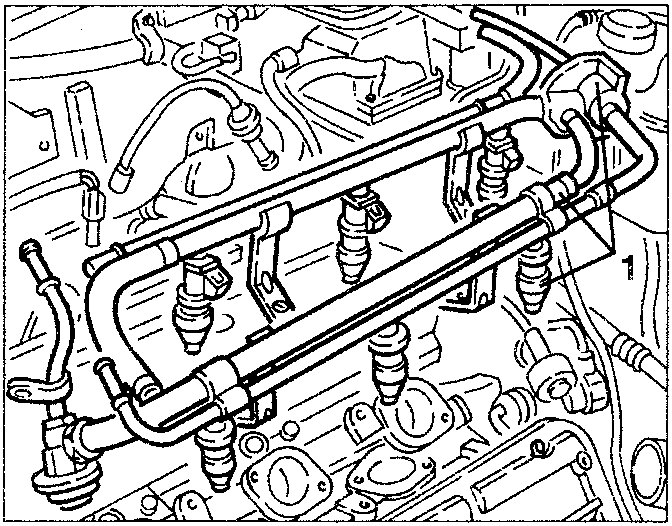

1. Slacken the fastening screws and remove the fuel distributor manifold complete with electroinjectors, pressure regulator and pulse damper.

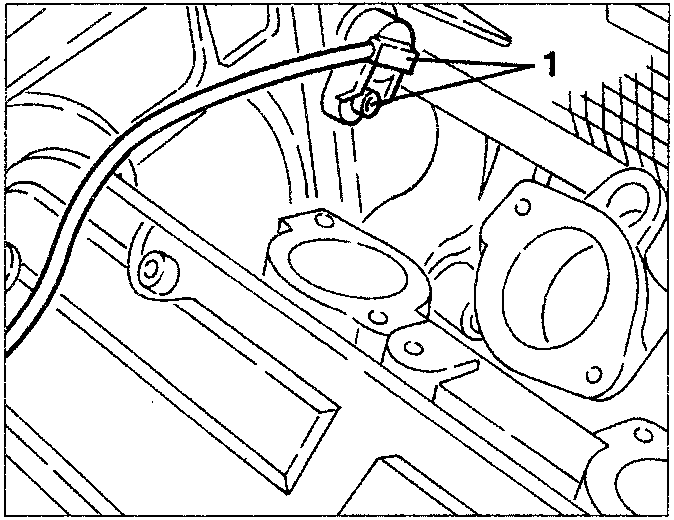

1. Slacken the fastening screw and remove the timing sensor from the right hand cylinder head.

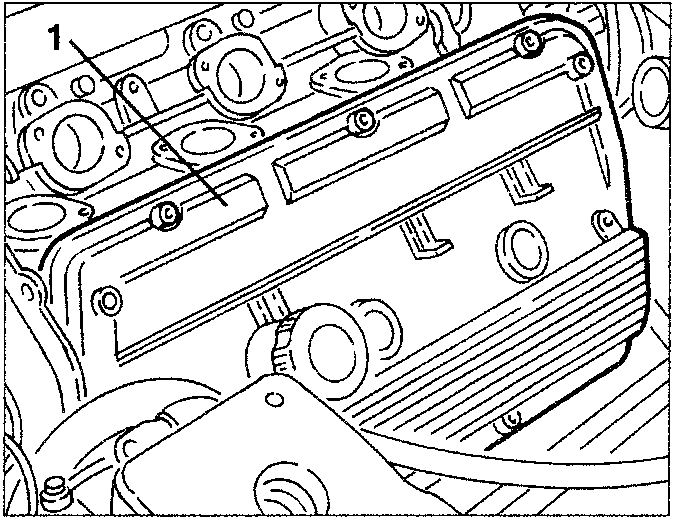

1. Slacken the fastening screws and remove the timing gear covers from the cylinder heads.

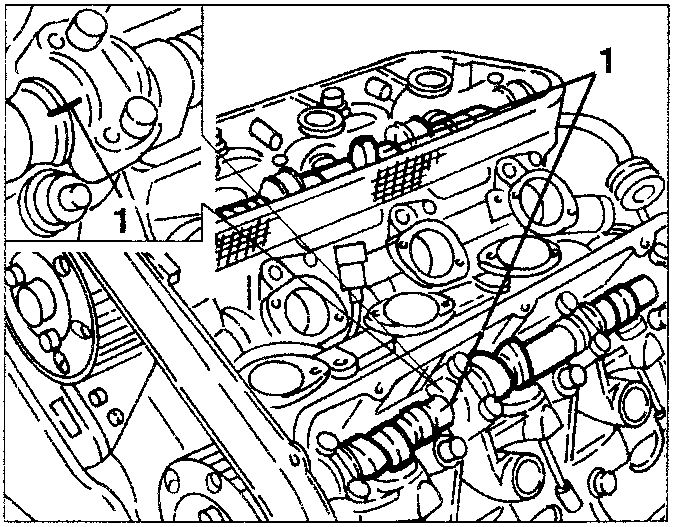

1. Turn the crankshaft until the notches on the camshafts coincide with those on the corresponding caps.
